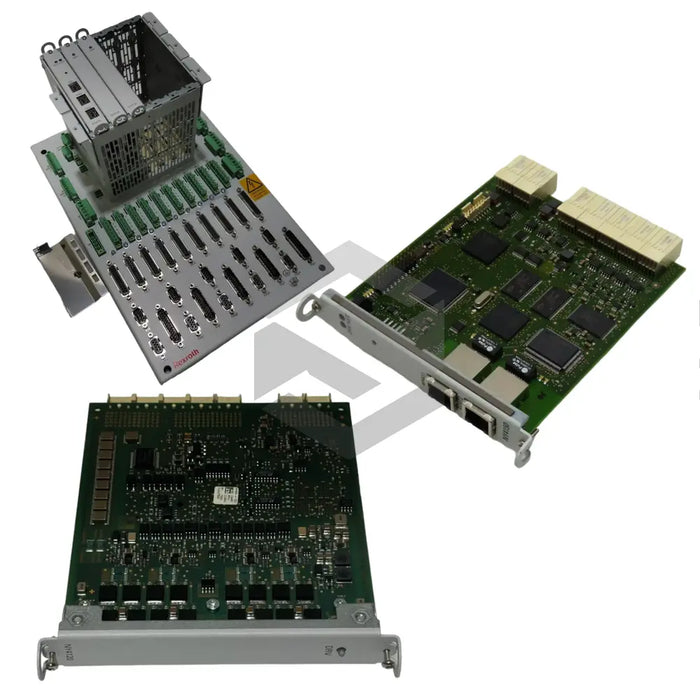

S image of NY4140

NY4140

by Bosch Rexroth Indramat
$1,784.68 - $1,784.68
$1,784.68
$1,784.68 - $1,784.68
$1,784.68

In Stock, Ships 1 - 3 Days

The NY4140 from Bosch Rexroth Indramat features a current control loop and offers overcurrent and temperature protection. Part of the NY Linear Drives, it runs at 16 or 32 kHz PWM and supports 48–150 V bus voltage. This lightweight 295 g module includes a single encoder input for precise motion feedback.

It delivers 10 A nominal current with 20 A peaks and consumes about 4.4 W at 24 V. Its compact dimensions are 21.7 mm width, 128.4 mm height, and 148.5 mm depth. Efficiency ranges from 92% to 95%.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Bus Voltage

Minimal 48 V, maximal 150 V

Current Control Loop

Yes

Efficiency

92% … 95%

I Nominal

10 A

I Peak

20 A

Input Current

6 A rms, 20 A peak

Maximum Voltage

170 V

Motor Power Voltage

0 V … 147 V

Number Of Encoder Inputs

1

Over Current And Over Temperature Protection

Yes

Physical Dimensions

21.7 mm width, 128.4 mm height, 148.5 mm depth

Power Consumption

Approximately 4.4 W at 24 V system power supply voltage

Pwm Frequency

16 or 32 kHz

Voltage Supply For Outputs

24 V ±6 V

Weight

295 gr
