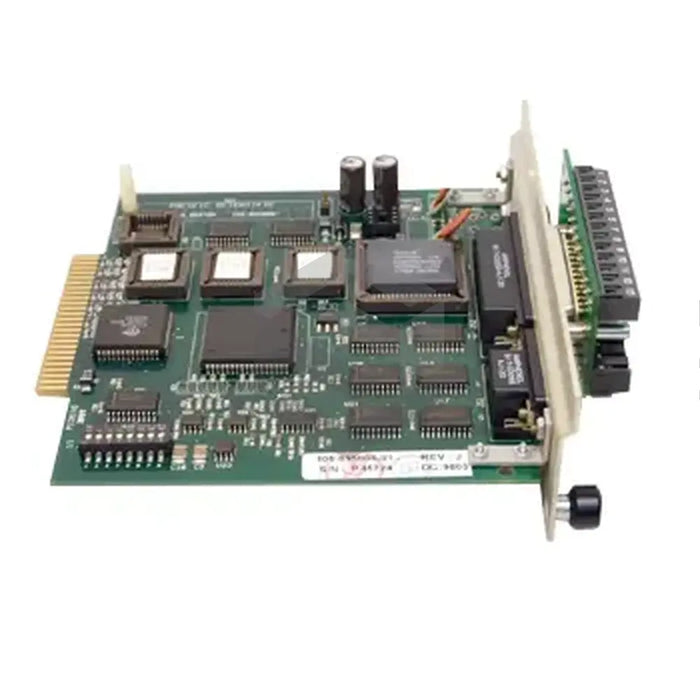

P image of OC950-504-01

OC950-504-01

by Pacific Scientific
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The OC950-504-01 positioning option card is a standard single-axis motion control card produced by Pacific Scientific. Ideal for medium to large volume OEM applications, it provides medium power and is compatible with 3-phase brushless permanent magnet motors. The OC950-504-01 card comes with various state-of-the-art features such as all-digital control, DSP based control current loops, and preset software application and system parameters. Notably, its auto-tuning feature ensures predictable and easy set up, while the advanced sinusoidal current control maintains uniform control dynamics at different shaft speeds. The part also includes a patented digital (DRDC) converter for advanced digital resolver, providing a standard 5.3 minute absolute accuracy and a 24-bit position resolution. It has a modular construction and features a removable option card for easy configuration. Additionally, it supports an RS-232/485 serial interface and comes with a single-axis programmable position. It also utilizes the SERCOS fiber optic interface for multi-axis applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product Type

Positioning Option Card

Model

OC950-504-01

Usage

Single-axis motion control

Power Level

Medium

Compatibility

Servo drives working with 3 – phase permanent magnet motors with brushless design

Design Aim

Medium to large volume OEM applications

Control Type

All-digital control featuring current loops with DSP based control

Setup

Auto-digital tuning

Additional Features

Digital (DRDC) converter to advanced patented digital resolver with standard 5.3 arc minute absolute accuracy and 24-bit position resolution; Advanced sinusoidal current control

Construction

Modular with an option for a removable option card

Interface

RS – 232/485 serial interface

Positioning

Single axis programmable position

Additional Interface

SERCOS fiber optic for multi-axis with removable personality parameters
