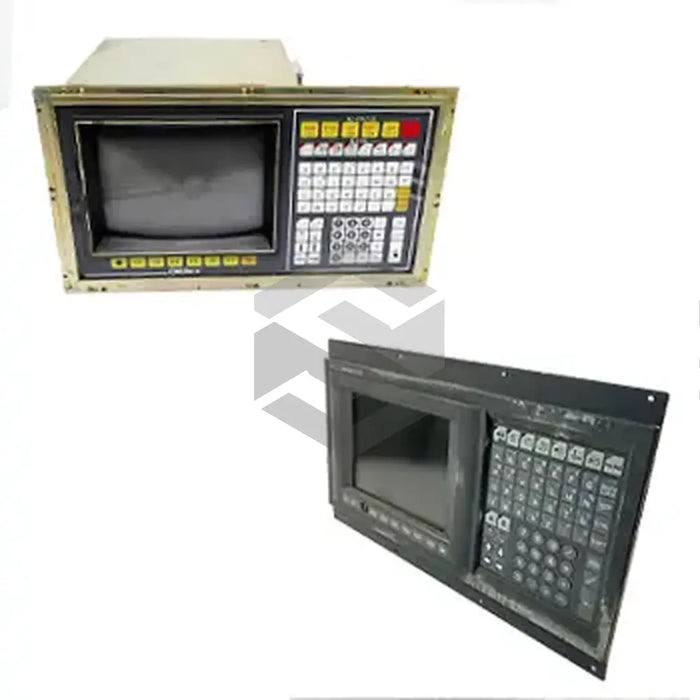

OSP10M
by Okuma
The Okuma OSP10M serves as a high-performance CNC monitor and controller within the OSP CNC Monitors series, delivering robust multi-axis motion control for complex machining operations. Designed and manufactured by Okuma, the OSP10M combines a flush-mounted enclosure with an intuitive human-machine interface to streamline operator workflows and minimize panel footprint. Its architecture supports precise 3 to 5 axes control, enabling simultaneous interpolation of linear and rotary axes for milling, turning, and five-axis machining. The controller’s integrated hardware and software deliver deterministic real-time performance, making it ideal for high-throughput production environments. Optimized for both new installations and retrofits, the OSP10M ensures reliable, repeatable operation in diverse industrial automation applications.
The detailed specifications for the OSP10M highlight its versatility and robustness. It operates on Input Voltage: 200V – 240V AC and accepts a Voltage Rating: 120/277 V, with a Current Rating: 20 A and a Power Rating: 3 W. The unit features a Mounting Type: Flush Mount and a Display: Monochrome/Color CRT (depends on model) configuration. Environmental resilience is demonstrated by a Minimum Operating Temperature: -4°F (-20°C) and a Maximum Operating Temperature: +60°C (+140°F). Memory capacity is scalable via Various RAM and ROM configurations, and processing is handled by an Okuma CNC Processing Unit running on the proprietary Operating System: Okuma real-time CNC OS. The controller supports Poles: 1 and a Control Type: Multi-axis motion control scheme to manage complex toolpaths.
Operational performance is centered on precision motion feedback and dynamic spindle regulation. The OSP10M incorporates a closed-loop feedback network using incremental and absolute encoders to guarantee positional accuracy across all controlled axes. Spindle speed regulation is achieved through an Integrated VFD for spindle speed regulation, delivering rapid acceleration and deceleration profiles that match compute-intensive interpolation demands. The controller’s real-time OS ensures sub-millisecond task scheduling for interpolation modes including linear, circular, and helical trajectories. Operator response times are minimized via a dedicated CNC Processing Unit, allowing seamless execution of pre-programmed cycles such as drilling, tapping, and milling. The system’s thermal and electrical ratings maintain stable performance under continuous operation, ensuring high uptime in demanding factory conditions.
System integration is facilitated through extensive communication and programming interfaces. Native G-Code support and conversational programming cycles simplify part program creation, while Direct Numerical Control (DNC) capabilities and an RS232 serial interface enable external program management and data transfer. The OSP10M’s compatibility with standard industrial protocols ensures plug-and-play connectivity to peripheral devices such as tool presetter systems and centralized automation networks. Target applications include precision milling centers, multi-axis turning lathes, and automated machining cells in sectors ranging from aerospace and medical to general manufacturing. The modular design of the Okuma OSP10M controller makes it a flexible choice for integrators aiming to optimize throughput, accuracy, and maintainability in modern industrial automation environments.
