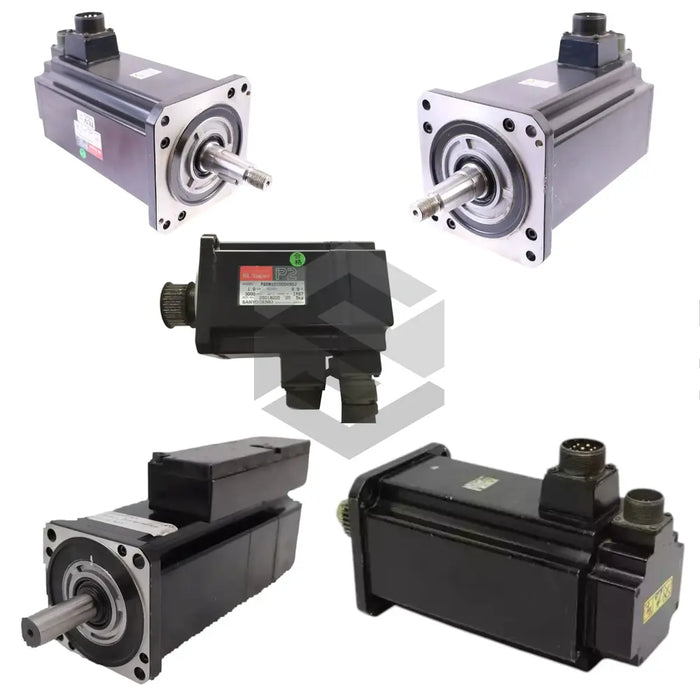

P20B10150DCL62

The Sanyo Denki P20B10150DCL62 is a high-performance servo motor in the P2 Super BL Servo Motors series, engineered by Sanyo Denki to deliver reliable industrial automation solutions. With a rated output power of 1.5 kW and a rated torque of 4.79 N·m, this compact drive excels in achieving precise control in mid-range load applications. The motor’s rated rotating speed of 3,000 min-1 and maximum rotating speed of 4,500 min-1 ensure responsive acceleration and deceleration profiles. Built to operate within 0 to 40°C ambient temperatures and under up to 90% (non-condensing) humidity, the P20B10150DCL62 is tailored for a variety of industrial environments. The unit’s robust construction balances power density with thermal management to maintain consistent performance.

Featuring a phase armature resistance of 0.42 Ω and a torque constant of 0.65 N·m/Arms, the motor delivers high-efficiency torque generation with minimized power losses. Its rated armature current of 8.4 Arms supports continuous operation while the continuous stall torque of 4.90 N·m protects against mechanical overloads. The motor’s induced voltage constant is optimized at 22.6 mV/min-1 to ensure stable voltage responses under dynamic conditions. For peak demand situations, it offers an instantaneous maximum stall torque of 14.7 N·m, enabling rapid load engagement without sacrificing control. An optional brake excitation voltage of 90 V (with a 24 V alternative) activates the integrated holding brake, rated at 7.84 N·m, to secure the load when power is removed.

Operational reliability is reinforced by the motor’s low rotor inertia of 2.04×10^-4 kg·m2, which enhances responsiveness in start-stop cycles and directional changes. The unit’s rated power rate of 117 kW/S facilitates swift power delivery, supporting high-speed pick-and-place or indexing operations. Designed for compatibility with a broad range of servo drives and controllers, this motor’s electrical characteristics minimize electromagnetic interference and simplify filtering requirements. Its sealed architecture and temperature‐tolerant components ensure stable performance even under variable thermal loads. The combined attributes of high torque density, efficient thermal behavior, and integrated braking establish the P20B10150DCL62 as a dependable workhorse in continuous manufacturing processes.

Seamless integration is achieved via standard mounting dimensions and industry-conforming electrical interfaces, making the motor compatible with existing automation platforms. Engineers can leverage its performance envelope in applications such as conveyor drives, robotic joints, machine tools, and packaging equipment. The motor’s precise control capabilities, combined with optional feedback devices, enable advanced motion profiles and real-time position monitoring. Overall, the Sanyo Denki P20B10150DCL62 offers a versatile, high-efficiency solution for demanding industrial automation tasks.
