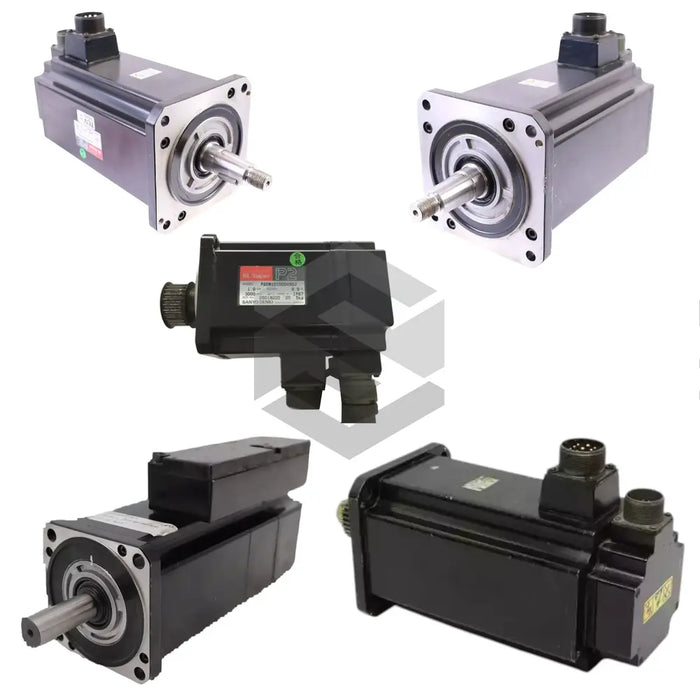

S image of P20B13050FXSAX

P20B13050FXSAX

by Sanyo Denki
$4,552.22 - $4,552.22
$4,552.22
$4,552.22 - $4,552.22
$4,552.22

In Stock, Ships 1 - 3 Days

{ "paragraphs": [ "

The P20B13050FXSAX from Sanyo Denki delivers a rated output of 5.0 kW and a rated torque of approximately 17.6 Nxm. Part of the P2 Super BL Servo Motors series, it operates at a rated rotational speed of 3,000 min? and features a torque constant of about 0.83 Nxm/A.

", "

With an electric time constant of about 13 ms and a maximum speed of 4,500 min?, it responds rapidly to control inputs. It operates reliably in ambient temperatures from 0 to 40 °C.

" ] }

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Continuous Stall Armature Current

Around 12.0 A (typical)

Continuous Stall Torque

Around 18.0 Nxm (typical)

Electric Time Constant

About 13 ms

Induced Voltage Constant

Approximately 29.0 mV/min?

Instantaneous Maximum Stall Armature Current

Approximately 26.5 A

Instantaneous Maximum Stall Torque

Approximately 26.5 Nxm

Maximum Rotational Speed

4,500 min?

Mechanical Time Constant

Approximately 0.57 ms

Operating Temperature Range

0 to 40 degrees C (ambient, non-condensing)

Phase Armature Resistance

Approximately 0.67 ?

Rated Armature Current

Approximately 11.9 A

Rated Output

5.0 kW

Rated Rotational Speed

3,000 min?

Rated Torque

Approximately 17.6 Nxm

Torque Constant

About 0.83 Nxm/A
