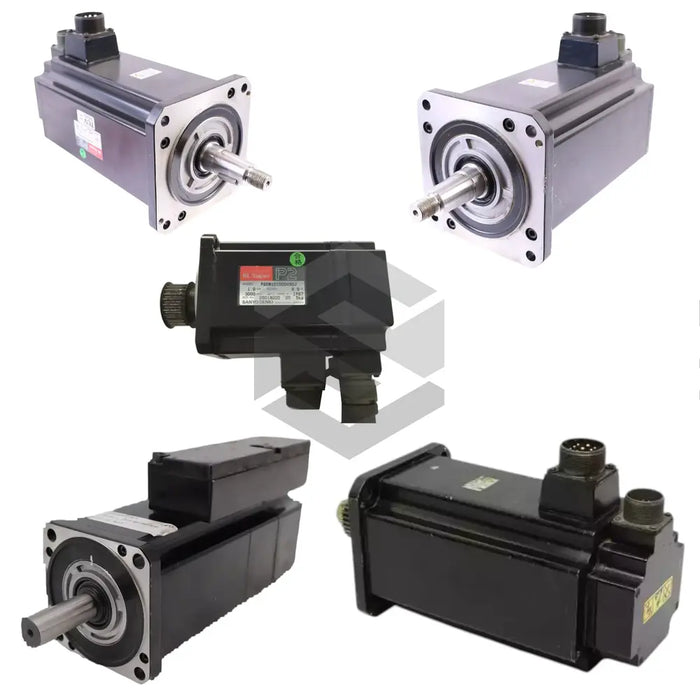

P20B13100FXSAM

The Sanyo Denki P20B13100FXSAM servo motor represents a high-efficiency, compact solution within the P2 Super BL Servo Motors series, delivering a rated output of 1.0 kW - 1.5 kW for demanding industrial automation tasks. Engineered by Sanyo Denki, this motor achieves a peak efficiency of 90 percent while minimizing inertia to accelerate dynamic response. Despite its reduced frame size, the P20B13100FXSAM maintains a robust rated torque of 3.19 N·m - 4.79 N·m and supports peak torque demands through an instantaneous maximum stall torque of 10.3 N·m - 17.7 N·m. The unit is optimized for use with the PZ0A050 amplifier, ensuring seamless integration and simplified system design in modern motion control applications.

The P20B13100FXSAM’s detailed specifications illustrate its balanced performance characteristics: it operates on a power supply of 200 to 230V AC ±10%/–15%, 50/60Hz ±3Hz, 3-phase and draws a power capacity at rating of 2.5 kVA - 3 kVA. The motor’s rated rotating speed of 3,000 min–1 coincides with a maximum rotating speed of 3,000 min–1, supporting consistent speed control. Environmental resilience is delivered through IP67 protection to guard against dust and water ingress, and the motor sustains operation within 0 to 40°C ambient temperature and 90% or less (non-condensing) humidity. The complementary amplifier, model PZ0A050, adds amplifier mass of 4.4 kg, matches the same 0 to 55°C operating temperature and 90% or less humidity rating, and ensures robust performance under industrial conditions.

Operationally, the P20B13100FXSAM employs an incremental encoder for precise feedback, enabling accurate position control and minimizing drift over extended run times. The motor features a torque constant of 0.89 N·m/Arms - 0.83 N·m/Arms, ensuring a predictable torque response per ampere. By omitting a holding brake, this design reduces mass and simplifies maintenance, while still delivering reliable torque under dynamic loading. Vibration and noise emissions remain low through the optimized brushless design, and the compact enclosure reduces inertia to accelerate start/stop cycles.

System integration is streamlined via compatibility with Sanyo Denki’s PZ0A050 amplifier family, providing common communication protocols and auto-tuning functions. The P20B13100FXSAM is UL listed and CE certified, meeting international safety and performance standards for industrial automation. Its combination of high torque density, IP67 protection, and precise encoder feedback makes it well suited for robotics, conveyor systems, packaging machinery, and any application demanding compact, reliable motion control.
