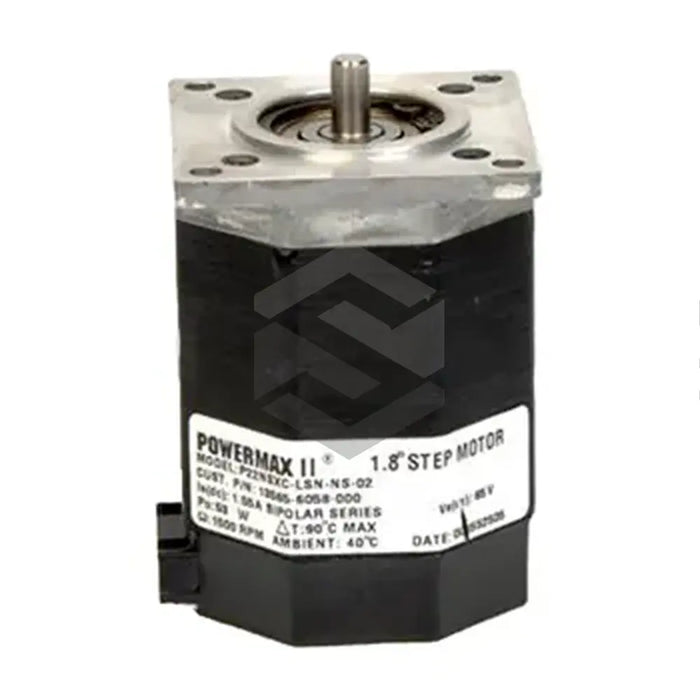

P image of P22NRXA-LDN-HD-00

P22NRXA-LDN-HD-00

by Pacific Scientific
$1,141.66 - $1,141.66
$1,141.66
$1,141.66 - $1,141.66
$1,141.66

In Stock, Ships Fast

The P22NRXA-LDN-HD-00 is a hybrid stepper motor created by Pacific Scientific. The model boasts a standard structure with a two-stack rotor, precise-ground outer diameter, and NEMA mounting. Its two-phase design includes polymer end caps with threaded inserts and is compatible with the manufacturer's micro-stepping drives. Special features include a laminated rotor for high-efficiency operation, large 30mm bearings yielding a 400% increase in fatigue life compared to 22mm ones, and neodymium-iron-boron rare-earth magnet rotors. Encapsulated type A windings enhance its versatility for various applications, with green or yellow wires for safety earth conductor during receptacle style termination. Adding to its capabilities, the motor possesses a UL Recognized, smooth double-ended shaft with an incremental encoder of 500 pulses per revolution. However, the product may experience demagnetization if operated above its rated current. Shipping worldwide is available via FedEx, UPS, or DHL.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product ID

P22NRXA-LDN-HD-00

Construction Style

Regular

Mounting Option

NEMA

Phases

Two

Rotor Type

Two-stack

Insulation Resistance

100 Megohms at 25°C and 500VDC

Angular Accuracy

+/-3% of one step without load

Rotor Efficiency

High-speed

Bearing Size

30mm

Shaft Diameter

0.375 inches

Motor Length

78.8mm

Rotor Magnet Type

Neodymium-iron-boron rare-earth

Bearing Fatigue Life

400% more than standard 22mm bearings

Encapsulated Windings

Type A

Wire Color

Green or yellow

Brand

POWERMAX II

Features

High dynamics at short positioning times

Certification

UL Recognized

Shaft Type

Double-ended

Encoder

Incremental (500 pulses per revolution)

Supports

Index and dual-channel quadrature output

Mounting Hole Diameter

46.02mm

Thermal Resistance

Measured when unmounted and hanging in still air

Demagnetization

occurs at higher than the rated current

Delivery

Worldwide through FedEx, UPS or DHL.
