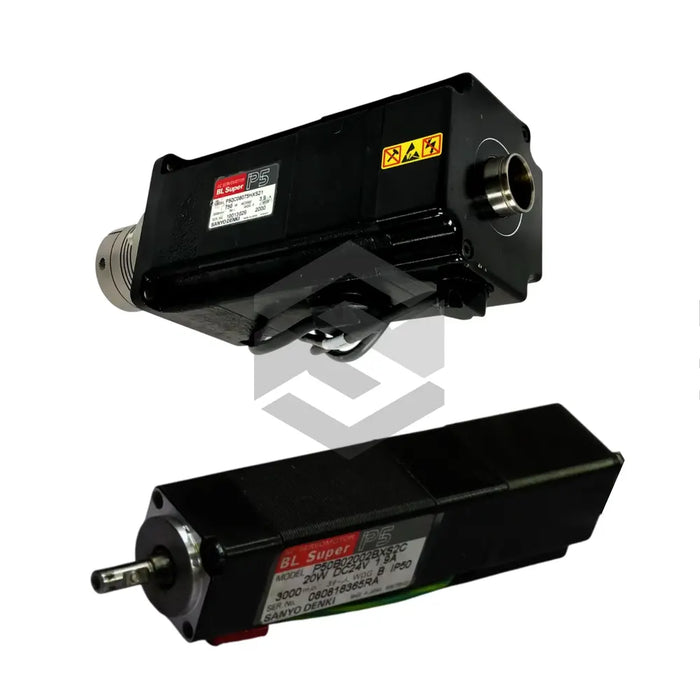

S image of P50B03003AXL61

P50B03003AXL61

by Sanyo Denki
$1,329.16 - $1,329.16
$1,329.16
$1,329.16 - $1,329.16
$1,329.16

In Stock, Ships 1 - 3 Days

The P50B03003AXL61 from Sanyo Denki features a rated output of 30 W and a protection class of IP40. Part of the P5 Super BL Servo Motors, it operates at a rated speed of 3000 min-1 and reaches up to 4500 min-1. It runs on 200230 V AC and delivers a continuous stall torque of 0.108 N B7m.

With flange-type installation and F-class insulation, it withstands 1200 VAC dielectric strength. The operating temperature spans from 0 to 40 DC. It tolerates humidity from 20% to 90% non-condensing.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Continuous Stall Torque

0.108 N·m

Dielectric Strength

1,500 VAC for 1 minute

Humidity Range

20% to 90% (non-condensing)

Installation Method

Flange type

Instantaneous Maximum Stall Torque

0.323 N·m

Insulation Grade

F

Maximum Rotating Speed

4,500 min-1

Protection Class

IP40

Rated Armature Current

0.5 Arms

Rated Output

30 W

Rated Rotating Speed

3,000 min-1

Rated Torque

0.098 N·m

Temperature Range (operation)

0 to 40°C

Temperature Range (storage)

-20 to 65°C

Voltage

200–230 V AC
