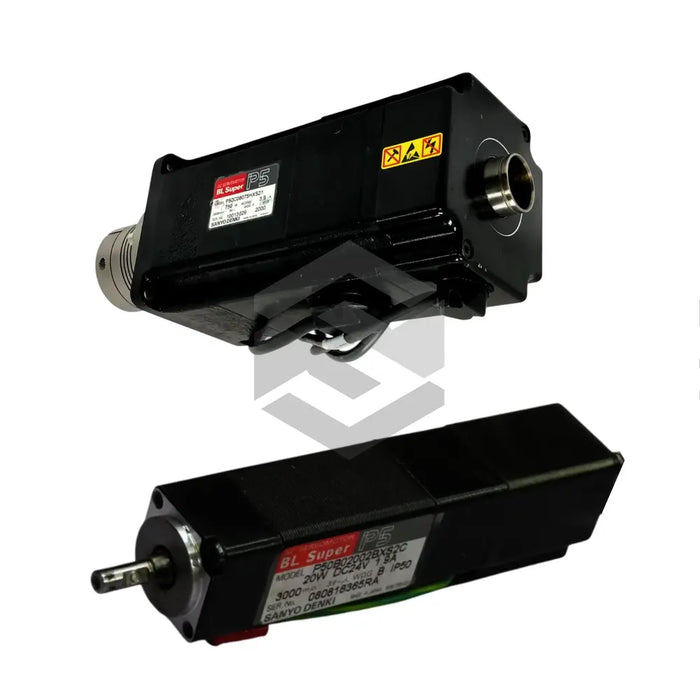

P50B03003DXL
by Sanyo Denki
The Sanyo Denki P50B03003DXL AC servo motor is part of the P5 Super BL Servo Motors series and exemplifies precision engineering for industrial automation. This compact yet robust unit delivers a rated output of 30 W and operates at a rated rotating speed of 3000 min⁻¹. It accepts a motor operating voltage of 200 to 230 V AC (±10% / -15%, 50/60Hz), making it compatible with standard 200 V power systems. Its primary function is to provide accurate, responsive motion control in assemblies with constrained space, ensuring reliable performance in a variety of industrial applications.
Designed around a permanent magnet excitation system, the P50B03003DXL features a fully closed, self-cooling protection system (IP40) that safeguards internal components while dissipating heat efficiently during continuous operation. The motor’s insulation grade is F type, supporting a dielectric strength of 1,500 VAC for 1 minute. A 50 mm square flange enables straightforward flange-type installation, and the unit is classified as an M1 motor type. With a maximum rotating speed of 4500 min⁻¹, this servo motor accommodates a broad speed range, while ambient operating conditions of 20 to 90% non-condensing humidity and a storage temperature window of -20 to 65 °C underscore its resilience in varied environments.
Additional design features include a vibration grade of V15, ensuring that the motor maintains stability under mechanical stress, and a paint finish of Munsell N1.5 or equivalent for corrosion resistance. The P50B03003DXL is compatible with Sanyo Denki’s PY2A015 amplifier, utilizing a 0.2 kVA main circuit power supply and 40 VA control power supply to deliver precise current control. Its compact footprint and fully closed, self-cooling construction minimize maintenance requirements, enhancing system uptime. Certified to IP40 protection, this servo motor delivers consistent torque response and improved thermal performance, making it an ideal solution for high-precision industrial automation tasks where reliability, efficiency, and durability are paramount.
