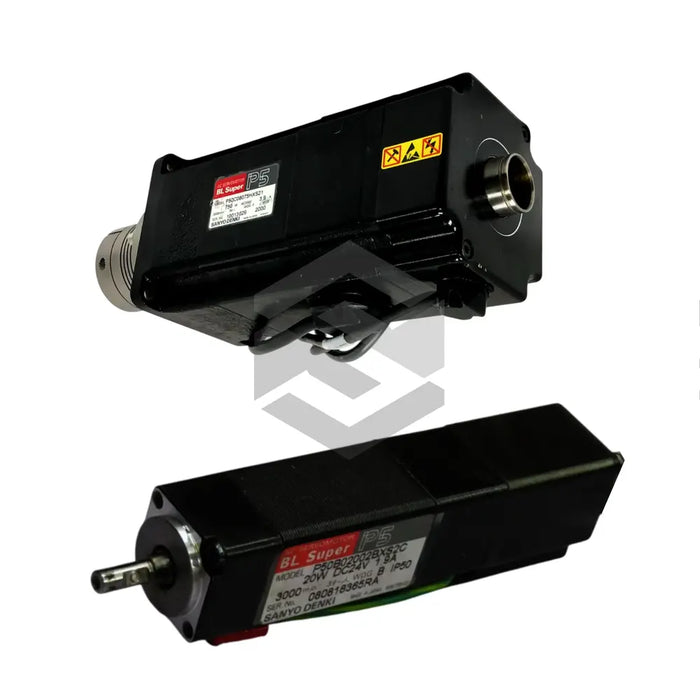

P50B05005DXS11

The Sanyo Denki P50B05005DXS11 is a high-performance servo motor in the P5 Super BL Servo Motors series, engineered for precision control in industrial automation. This robust device delivers a 125 W power rating at a 50 V voltage rating, achieving a 3000 min-1 rated speed with a 0.159 Nm rated torque for consistent light-to-medium load handling. Integrated within this compact unit are advanced stability mechanisms that enable reliable operation over extended cycles. Manufactured by Sanyo Denki, the P50B05005DXS11 combines compact design and high dynamic response for demanding industrial environments.

The technical specifications of the P50B05005DXS11 underline its versatility and precision. It features an instantaneous max. stall torque of 0.49 Nm and an instantaneous max. stall armature current of 2.9 Arms to support rapid acceleration demands. The armature operates at 0.85 A nominal current and withstands a 5 A current rating during peak loads. The motor’s insulation resistance of 10 kΩ and tolerance of ±15% ensure electrical integrity and manufacturing precision. A mechanical time constant of 2.6 ms (not including sensor) and a switching speed of 100 ns enable fast response to control commands, while the total inertia of 0.089 g·cm·s² (including ABS-E) maintains position accuracy.

Operational performance is optimized through environmental and mechanical features designed for industrial settings. The P50B05005DXS11 sustains continuous operation in ambient temperatures from 0°C to +40°C and full survival in storage or transit from -40°C to +85°C. The panel mount type configuration, with physical dimensions of 10 mm x 5 mm x 2 mm, facilitates seamless integration into compact assemblies. A built-in holding brake weighing 0.3 kg secures the output shaft after shutdown, improving safety and positioning stability. The servo’s sealing structure protects internal components against dust and debris, ensuring reliable, long-term operation.

System integration is streamlined for modern automation platforms, leveraging standard electrical and mechanical interfaces to simplify installation. The P50B05005DXS11’s compact form factor and panel mount capability reduce cabinet space requirements, while its precise torque and speed characteristics support coordinated multi-axis control. Ideal applications include conveyor indexing, pick-and-place machines, and small robotic arms in the industrial automation sector. Compatibility with common drive controllers and servo amplifiers makes this motor a versatile component for OEMs seeking high performance in constrained footprints.
