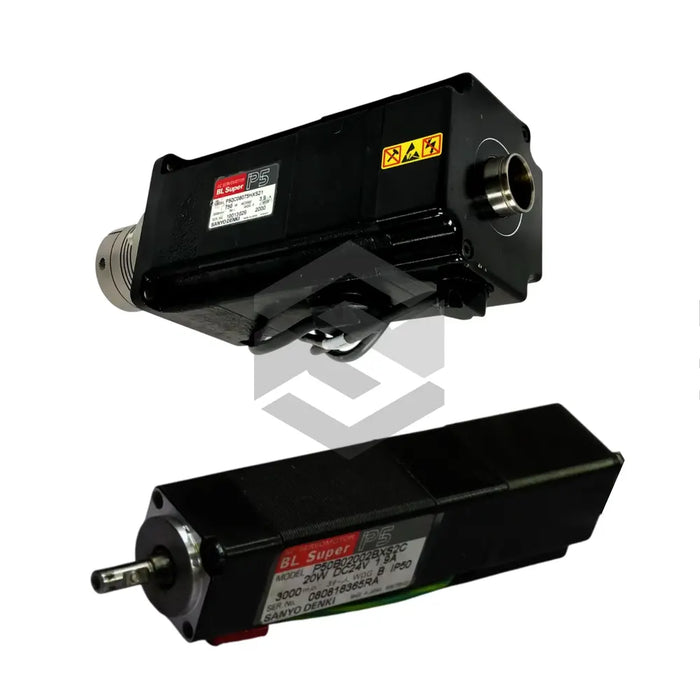

S image of P50B05010DXLGN

P50B05010DXLGN

by Sanyo Denki
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The P50B05010DXLGN is a brushless servo motor from Sanyo Denki's P5 Super BL Servo Motors series, delivering a rated output of 100 W at a rated speed of 3000 min⁻¹ and a torque constant of 0.353 N·m/Arms. It achieves a maximum speed of 4500 min⁻¹, operates between 0 to 40°C, and tolerates 90% humidity (non-condensing). Featuring an IP55 protection rating and a flange-type mount, this 200 V AC motor draws 1.6 Arms and provides precise control for industrial automation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Brake Excitation Current

0.08 (0.3) A

Brake Excitation Voltage

90 (24) V

Brake Holding Torque

0.167 N⋅m

Brake Mass

0.3 kg

Humidity Tolerance

90% or less (non-condensing)

Induced Voltage Constant

4.76 ±10% mV/min⁻¹

Instantaneous Maximum Stall Armature Current

6.7 Arms

Instantaneous Maximum Stall Torque

0.98 N⋅m

Maximum Rotating Speed

4500 min⁻¹

Operating Temperature

0 to 40℃

Rated Armature Current

1.6 Arms

Rated Output

100 W

Rated Rotating Speed

3000 min⁻¹

Rated Torque

0.319 N⋅m

Torque Constant

0.353 N⋅m/Arms
