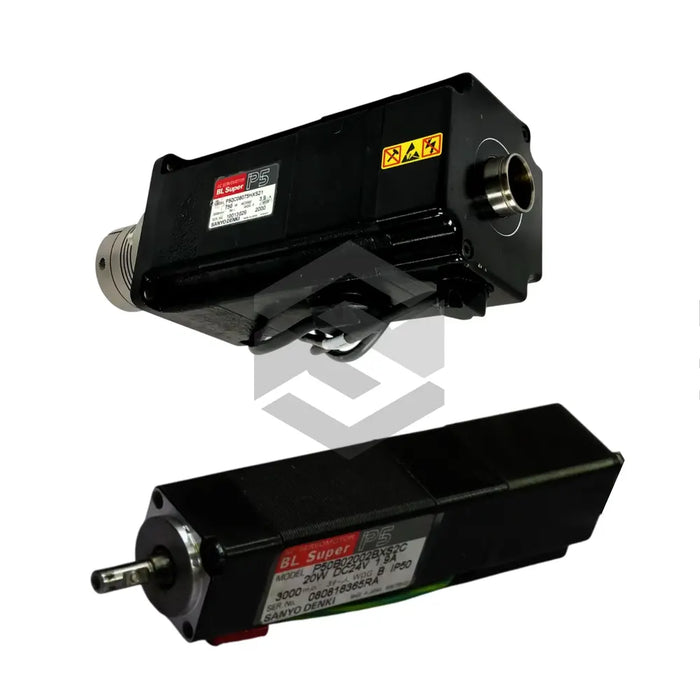

P50B07040HCS4P

The P50B07040HCS4P is a high-performance brushless servo motor manufactured by Sanyo Denki as part of the P5 Super BL Servo Motors series, delivering a rated output power of 400W and a rated torque of 1.274 N·m. It achieves a rated rotating speed of 3,000 min⁻¹ with a peak capacity reaching maximum rotating speed of 4,500 min⁻¹, ensuring rapid acceleration and precise positioning for demanding industrial applications. The motor’s robust design employs an F type insulation grade and withstands a dielectric strength of 1,500 VAC for 1 minute to maintain winding integrity under high-voltage test conditions. Housed within a fully closed, self-cooling protection system, the unit offers compact dimensions and consistent thermal management for continuous operation. Its flange type installation method facilitates straightforward mounting in tight machine frames while supporting heavy-duty usage.

Engineered for reliability and efficiency, the servo motor utilizes a permanent magnet excitation system to maximize torque density and energy conversion. Electrical performance is further refined by a phase armature resistance of 0.741 Ω, which minimizes heat generation and ensures stable current distribution under load. The motor’s time rating of continuous duty enables uninterrupted operation in automated production lines, while a vibration grade of V15 maintains precision in high-speed rotational tasks. Environmental resilience is guaranteed through an operating ambient humidity range of 20 to 90% (non-condensing) and storage capability from –20 to 65 °C, accommodating a variety of industrial climates.

Operational advantages include swift thermal dissipation via the self-cooling housing, eliminating the need for external fans and reducing maintenance requirements. The integrated 24V holding brake provides immediate locking torque to secure loads when powered down, enhancing safety in motion control systems. Thanks to the motor’s high torque output and compact footprint, it supports both high‐acceleration indexing and steady state positioning, making it suitable for precision assembly, pick-and-place, and material handling. Its flange mounting and robust dielectric resistance ensure long-term reliability, even under fluctuating environmental conditions and frequent start-stop cycles.

Designed for seamless integration, the P50B07040HCS4P interfaces readily with standard servo drives and motion controllers, streamlining commissioning in complex automation architectures. Its versatile performance characteristics make it ideal for applications in CNC machining centers, robotic arms, semiconductor handling, and packaging machinery, where accuracy and repeatability are paramount. Engineers will appreciate the motor’s balance of power density and thermal stability when optimizing industrial automation systems. With the P5 Super BL series, Sanyo Denki delivers a reliable solution for high-precision motion control across a wide range of manufacturing environments.
