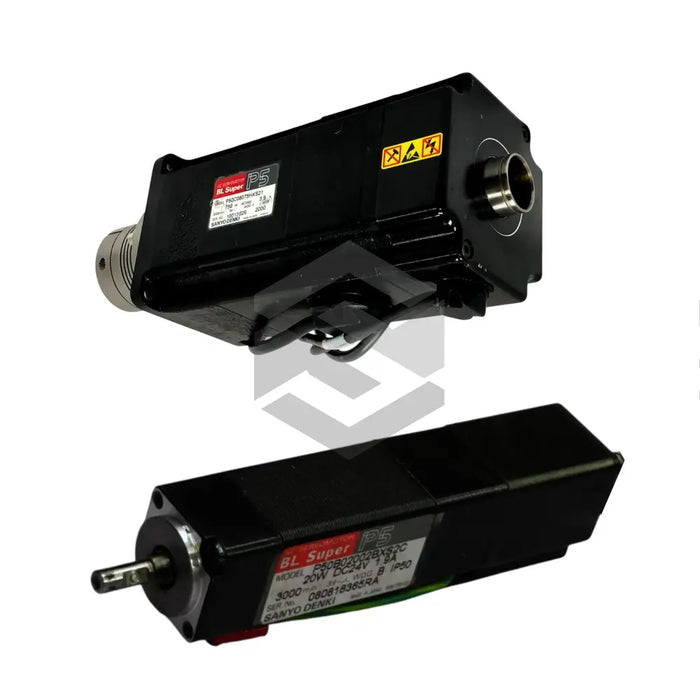

P50B07050DCLBJ

The Sanyo Denki P50B07050DCLBJ is an advanced servo motor engineered by Sanyo Denki and forming part of the P5 Super BL Servo Motors series. This compact unit features a flange size of 76 mm and delivers a rated rotating speed of 3000 min⁻¹ with a rated armature current of 3.0 Arms. Designed for demanding industrial automation, it achieves a rated power rate of 22.1 kW/S while maintaining a lightweight profile with a mass including wiring-saving mechanism of 2.1 kg. With its combination of compact dimensions and robust performance, the P50B07050DCLBJ meets the precision requirements of modern machinery.

Featuring exceptional technical capabilities, this servo motor employs a permanent magnet excitation system to ensure high efficiency and minimal maintenance. It delivers a torque constant of 0.481 N·m/Arms and a continuous stall torque of 1.372 N·m for stable load handling. The motor’s continuous stall armature current of 3.1 Arms and phase armature resistance of 1.65 Ω are optimized for consistent thermal performance under prolonged duty cycles. A rotor inertia (inc) of 0.74 × 10⁻⁴ kg·m² and a shaft diameter of 16 mm confer dynamic response and mechanical compatibility with standard couplings.

Operationally, the P50B07050DCLBJ integrates a 90V DC brake system with a brake holding torque of 0.98 N·m, enabling secure stops and precise positioning when power is removed. The motor sustains a maximum rotating speed of 4500 min⁻¹ for short bursts of high-speed performance, while its thermal stability is supported by robust internal design. The combination of lightweight construction and conservative heat generation extends component life and reduces maintenance intervals. With its mass including wiring-saving mechanism of 2.1 kg, installation is simplified in compact assemblies without sacrificing durability.

Designed for seamless integration, this servo motor interfaces with common industrial drives and controllers through a standardized motor flange and shaft interface. Its flange size of 76 mm and shaft diameter of 16 mm ensure compatibility with a wide range of gearboxes and couplings. Ideal for applications in robotics, CNC machinery, and automated assembly lines, the P50B07050DCLBJ delivers precise motion control and rapid acceleration. Engineers can readily deploy this motor in systems requiring high torque density and reliable braking performance.
