P60B13050DBPD1
by Sanyo Denki

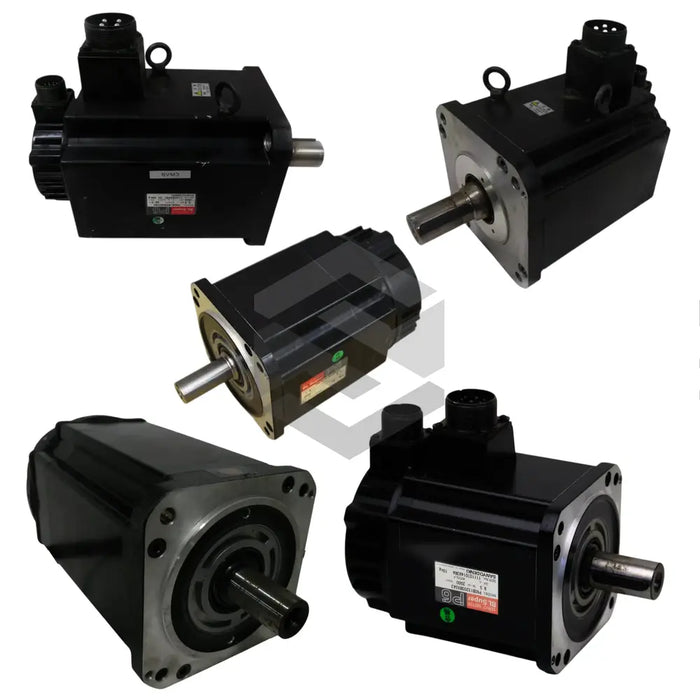

The Sanyo Denki P60B13050DBPD1 is a high-performance servo motor from the P6 Super BL Servo Motors series designed specifically for industrial automation and precision motion control. Featuring a 130 mm square flange for robust mounting and a 0.5 kW rated output, this motor delivers reliable torque in compact installations. Its permanent magnet, wiring-saving design ensures efficient power conversion and smooth operation under standard industrial conditions.
In terms of technical specifications, the P60B13050DBPD1 operates on a 200 to 230 V AC supply voltage with a tolerance of ±10%/–15%, and it can be driven by both 50/60 Hz frequency networks with a ±3 Hz variation. The motor achieves a rated rotating speed of 2000 min⁻¹ and reaches a maximum rotating speed of 3000 min⁻¹ for rapid response applications. It delivers a rated torque of 2.5 N·m under continuous operation, with a continuous stall torque of 3.0 N·m at 7.8 Arms of armature current. For short-duration peak demands, the motor provides an instantaneous maximum stall torque of 7.0 N·m, enabling precise handling of transient loads.
Built to withstand challenging environments, this servo motor carries an IP67 protection rating in its brake-equipped version, offering dust tightness and resistance to temporary water immersion. It operates reliably between 0 to 40 °C and in ambient humidity levels of up to 90% (non-condensing). The P60B13050DBPD1 is suitable for integration into a wide range of control systems, leveraging its 4.5 Arms rated armature current capacity and stable performance across varied load cycles. By combining durability, high torque density, and flexible voltage and frequency compatibility, this motor delivers enhanced efficiency and uptime in industrial applications, reducing maintenance and optimizing throughput.
