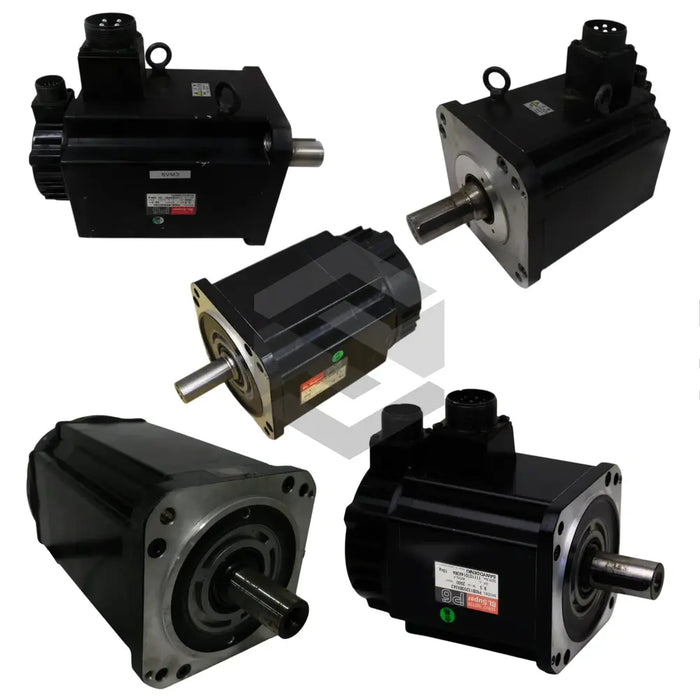

The P60B13150HCSA3 is a servo motor by Sanyo Denki from the P6 Super BL Servo Motors series, delivering 1.5 kW output and 4.79 N·m rated torque at 3,000 min⁻¹. It features a 29.0 mV/min⁻¹ induced voltage constant, 6.3 Arms stall current, 17.7 N·m peak torque, integrated 8192 P/R absolute encoder, IP67 protection, 9 Nm holding brake, and weighs 7.8 kg, operating at 0–40°C.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Continuous Stall Armature Current
6.3 Arms
Continuous Stall Torque
4.90 N·m
Electric Time Constant
13 ms
Induced Voltage Constant (keφ)
29.0 mV/min⁻¹
Instantaneous Maximum Stall Armature Current
26.5 Arms
Instantaneous Maximum Stall Torque
17.7 N·m
Maximum Rotating Speed
3,000 min⁻¹
Mechanical Time Constant
0.57 ms
Operating Temperature
0 to 40C, ≤90% humidity (non-condensing)
Phase Armature Resistance
0.67 Ω
Rated Armature Current
6.5 Arms
Rated Output
1.5 kW
Rated Rotating Speed
3,000 min⁻¹
Rated Torque
4.79 N·m
Torque Constant (kt)
0.83 N·m/Arms
