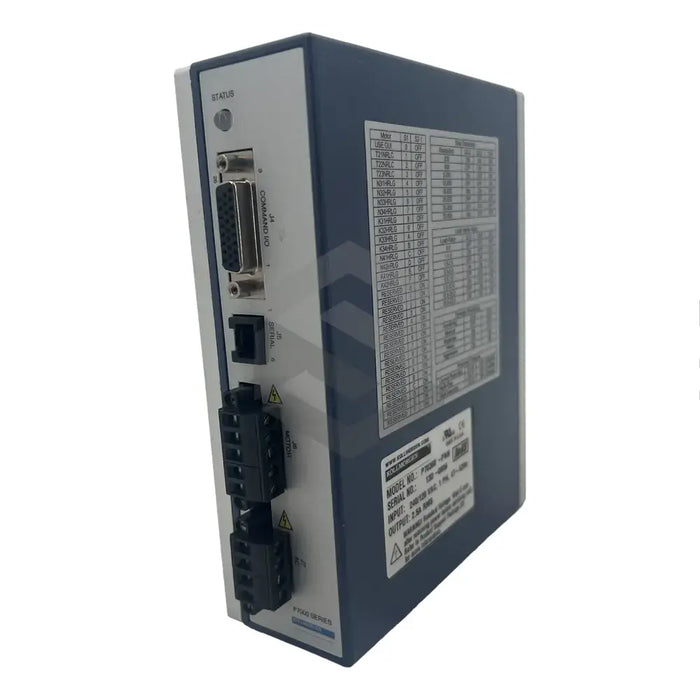

C image of P70360-PNN | Main (Front Left)

P70360-PNN

by Kollmorgen
$3,667.35 - $4,161.38
$4,161.38
$3,667.35 - $4,161.38
$4,161.38

In Stock, Ships Fast

The Kollmorgen P70360-PNN is a top-tier micro-stepping AC drive from the P7000 series. This drive, which has a 3.5A peak AC rate and 120VAC/240VAC voltage rating, is designed to provide step/direction and indexing functionality, without any need for electrical feedback. It operates with a power dissipation of 15W at 3.5A. General purpose outputs are rated at a maximum of 30VDC voltage and 10A current. This drive must be installed below 1500m and stored between -20 and +70 degrees. Proper performance may occasionally require fan cooling, and for optimum heat regulation, the drive should be installed upright with heat sink fins placed to the left. Key features also include a quick <1ms current reversion time, 20mA current rating ENABLE input, and signals to be stepped and directed via shielded and twisted pair cables. Compliant with cUL and CE certifications, this product can be shipped worldwide.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Series

P7000

Manufacturer

Kollmorgen

Product Type

Micro-Stepping AC Drive

Peak AC Rating

3.5A

Voltage Rating

120VAC/240VAC

Functionality

Step/Direction and Indexing

Feedback

None

Electrical Option

None

Power Dissipation

15W at 3.5A

Reduced Idle Current to Full Current Time

Less than 1ms

General Purpose Outputs Voltage

30VDC

General Purpose Outputs Current

10A

Installation Height

Less than 1500m

Storage Temperature

-20°C to +70°C

Cooling Requirement

May require fan cooling

Heat Sink Position

To the left when mounted upright

LED ON/OFF Time

250ns

ENABLE Input Current

20mA

Signal Cables

Shielded and Twisted Pair

Motor Inductance

50mH to 200mH with 320VDC bus supply

Certification

cUL Recognized and CE Certified

Delivery

Worldwide.
