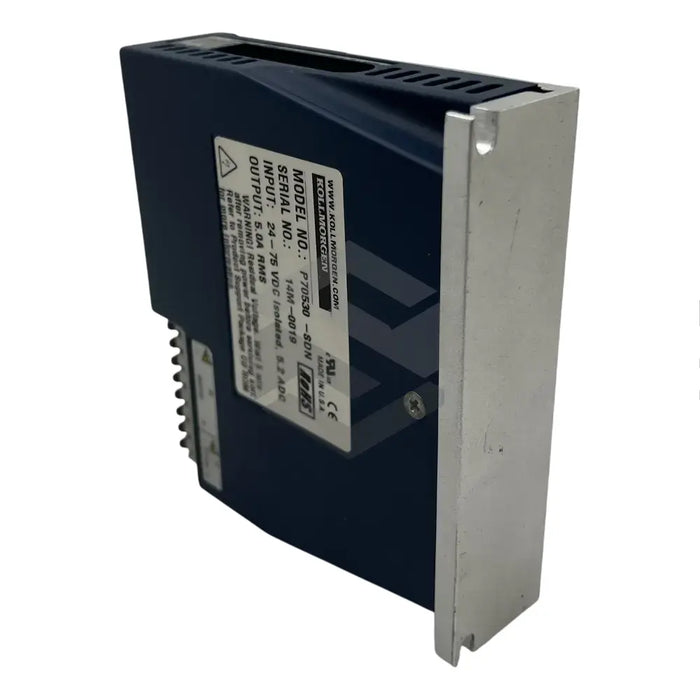

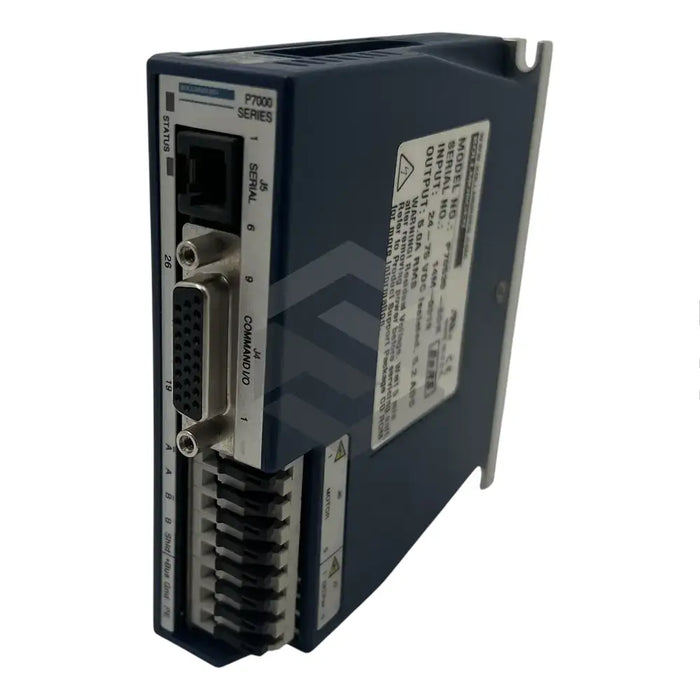

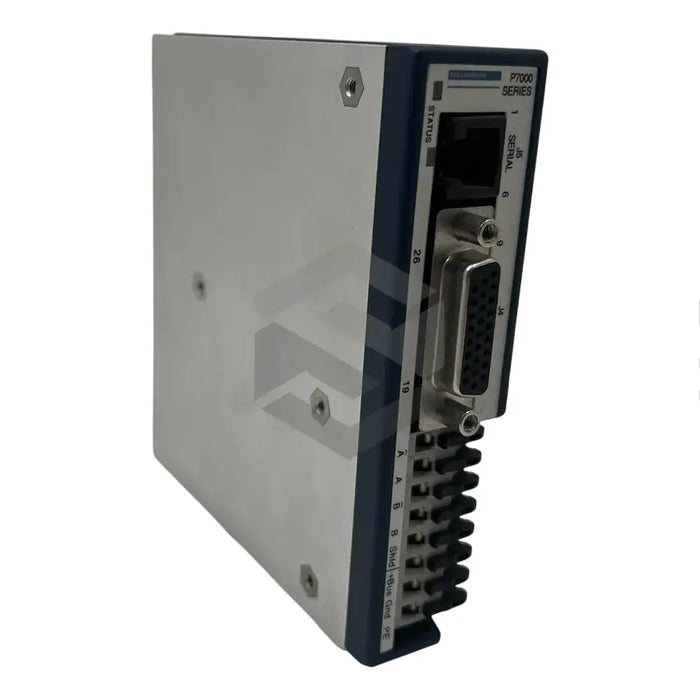

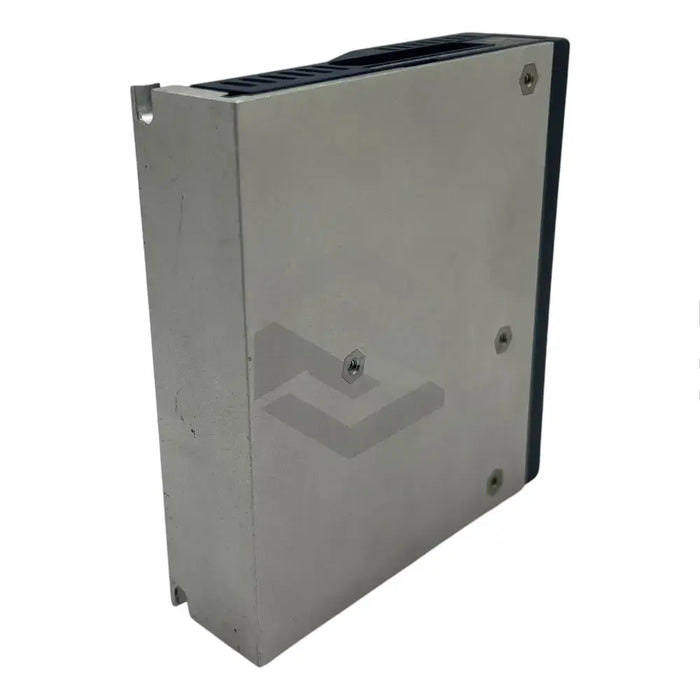

P70530-SDN

Original price $1,224.00 - Original price $1,224.00
Original price
$1,224.00
$1,224.00 - $1,224.00
Current price $1,224.00
In Stock, Ships Today
Request a quote
The P70530-SDN micro-stepping drive is designed by Kollmorgen and belongs to their P7000 series. With a 5A continuous current and 1.8W power rating when turned off, it's possible to mount this unit either vertically or horizontally utilizing 8x32 screws. The P70530-SDN operates efficiently between 0°C and 45°C and requires a minimum 1-inch space around it for effective convection cooling. With the maximum step input frequency of 2MHz, it features a default ENABLE input with a 5mA current rating. Notably, care must be taken to keep direction and step signals away from motor leads to ensure optimal performance. The drive is also equipped with a fault output indicating latched conditions and an RS-232 interface via the J5 serial connector. Setup is simplified through the P7000Tools software. This robust drive is CE Certified and cUL Recognized and available for international shipping.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Code: P70530-SDN
  • Series: P7000
  • Current Rating: 5A Continuous
  • Power Rating: 1.8W when disabled
  • Mounting Type: Horizontal and Vertical
  • Pollution Degree: II
  • Operating Temperature: 0°C to 45°C
  • Cooling Space: Minimum 1 inch on all sides
  • Step Input Frequency: 2MHz Maximum
  • ENABLE Input Default: Open with 5mA current rating
  • Placement: Step signals must be placed away from motor leads
  • General Purpose Input: Shares one optically isolated pull up/down bus
  • Step Inputs ON/OFF Time: Minimum 800ns
  • Fault Output: Dedicated with LED indication
  • Interface: Full-Duplex RS-232
  • Motor Compatibility: Stepper Motors with four-flying lead configuration
  • Software Requirement: P7000Tools
  • Certifications: CE Certified and cUL Recognized
  • Delivery: Worldwide
