PB1D002R100

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message

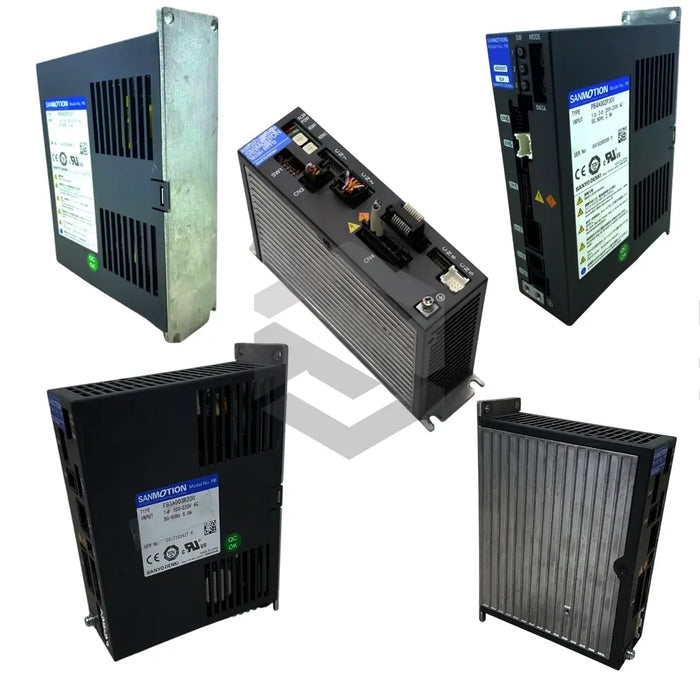

The Sanyo Denki PB1D002R100 servo driver from the PB SANMOTION Servo Drivers series is housed in a robust die-cast aluminum housing and operates on a 220 V AC power supply with an IP65 protection rating. Weighing 0.75 kg and rated for temperatures from –20 °C to +55 °C, this module offers automatic current limiting to prevent overcurrent, and a Phase origin monitor & alarm output (≤10 mA, Vsat ≤1.0 V) for precise feedback. Input is via a photocoupler with 260 Ω input resistance, supporting both 1- and 2-input pulse modes and 2- and 5-phase step division modes. PC-based functions enable parameter customization and status monitoring, while built-in protection functions cover checksum errors, hardware faults, wire breaks, speed errors and limit reached events, ensuring reliable industrial automation performance.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Automatic current limiting


On/Off

Command pulse input


Photocoupler; 260 Ω input resistance

Initial excitation phase


Available

Low vibration mode


On/Off

Material


Die-cast aluminum housing

Output voltage range


12-24 V DC

PC-based functions


Parameter customization; status monitoring

Phase origin monitor & alarm output


≤10 mA, Vsat ≤1.0 V

Power supply


220 V AC

Protection functions


checksum, hardware error, wire break

Protection functions (additional)


speed error, limit reached

Protection rating


IP65

Pulse input mode


1- and 2-input modes supported

Step division mode


2- and 5-phase modes supported

Temperature range


-20°C to +55°C

Weight


0.75 kg
