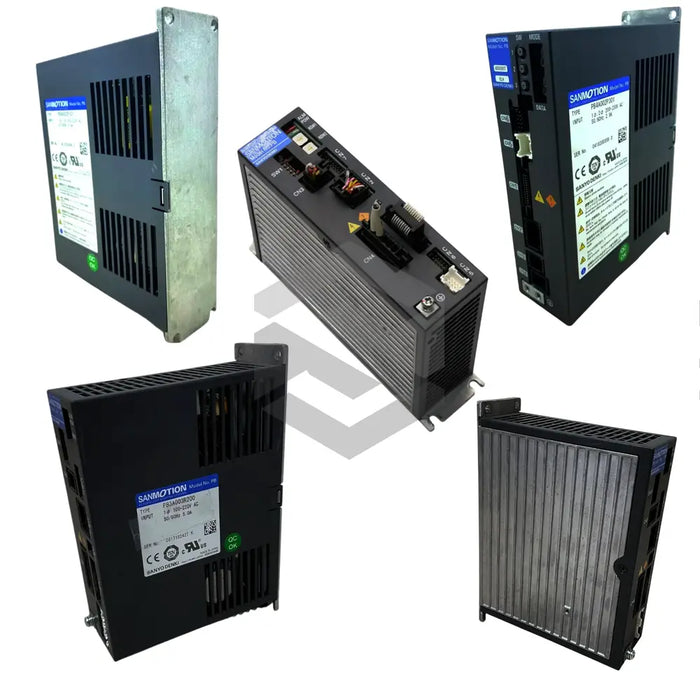

PB1D002R109

The PB1D002R109 by Sanyo Denki is a robust servo driver in the PB SANMOTION Servo Drivers series, engineered for precise motor control in demanding industrial automation environments. It accommodates motor sizes from 42 mm to 86 mm and supports encoder resolutions up to 16,000 P/R, ensuring high positioning accuracy. The driver accepts an Input Power Supply of single-phase 100–115 VAC or three-phase 200–230 VAC, providing flexibility in installation. With a Motor Excitation Current of 2 A and a Max Current Consumption limited to 2.7 A, it delivers consistent performance while adhering to safety margins. The design incorporates an Aluminum heatsink (passive) cooling solution that maintains steady thermal conditions without additional fans. Operating reliably across an Operating Temperature range of 0°C to +55°C, this servo driver is ready for diverse industrial settings.

Building on its solid hardware foundation, the PB1D002R109 offers versatile communication with Supported Interfaces including EtherCAT, RS-485 half-duplex, Parallel I/O, and Pulse train inputs for seamless integration with PLCs and motion controllers. Its built-in Regenerative Control capability recycles energy during braking cycles, improving overall system efficiency and reducing heat generation. The passive cooling design ensures reliable thermal management under continuous load, while the Vibration Resistance rating of up to 0.5 G shields internal components against mild mechanical shock. The unit’s advanced control algorithms optimize torque delivery and minimize overshoot, providing smooth acceleration and deceleration profiles. With conservative current limits and energy recycling, this driver extends motor life and reduces operational costs.

Designed for long-term reliability, the PB1D002R109 endures storage temperatures from -20°C to +70°C and up to 90% RH (non-condensing) operating humidity, supporting extensive logistical flexibility. Its rugged construction and passive cooling reduce maintenance requirements, while standardized interfaces simplify installation and diagnostics. The broad input voltage tolerance and built-in regenerative functions make it ideal for conveyor systems, robotic arms, CNC machinery, and other industrial automation applications. Integration is expedited through compact packaging and industry-standard communication protocols, ensuring quick deployment in both new and retrofit projects. This driver combines efficiency, durability, and adaptability for high-precision motion control in modern manufacturing environments.
