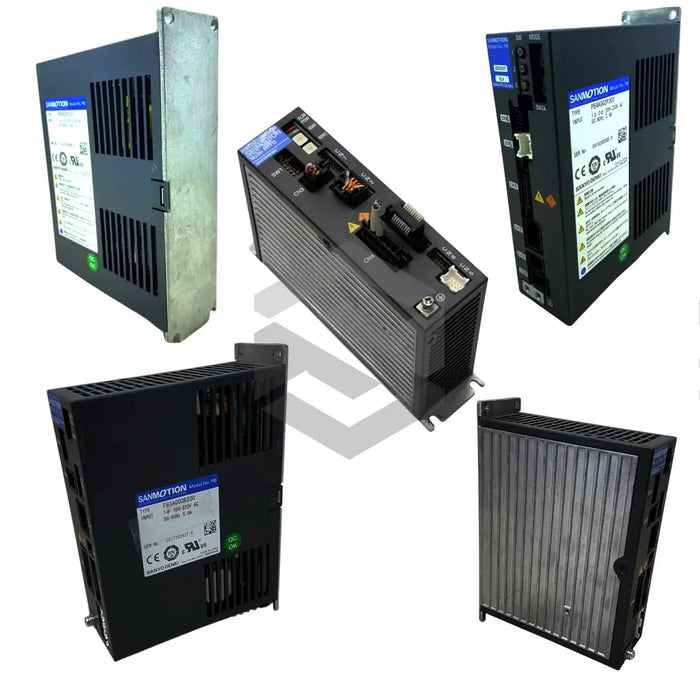

PB2D003R1UC

The PB2D003R1UC is a precision servo driver developed by Sanyo Denki and part of the PB SANMOTION Servo Drivers series, designed for demanding industrial automation tasks. This compact unit supports DC Power Input and delivers a steady Excitation Current of 3A to ensure consistent torque response. Capable of a Speed Range from 0 to 4500 RPM, the driver adapts seamlessly to a variety of motion profiles. Measuring 120 x 55 x 80 mm, the device maintains a small footprint and weighs only 0.5 kg, making it ideal for installations in restricted spaces. Integrated temperature resilience allows continuous operation from 0 to +55°C, with safe storage down to –20 to +70°C.

With robust Communication Interface options including RS-485 and Parallel I/O, the PB2D003R1UC offers versatile connectivity for modern control architectures. The built-in Incremental Encoder (200 PPR) interface assures high-resolution feedback and precise position monitoring. Maximum current draw is rated at 3.5A per axis, supporting heavy load conditions without compromising stability. The dedicated Power Cable (PBC6P0020A, 2 meters) simplifies cable management and ensures reliable power delivery. A multi-mode interface and homing mode further expand operational flexibility, accommodating complex motion sequences and automated calibration.

Operational reliability is reinforced by the driver’s compact form factor and robust construction. At just 0.5 kg, installation and maintenance are streamlined, reducing downtime and resource requirements. The driver performs optimally within an Operating Temperature of 0 to +55°C, while secure storage parameters (–20 to +70°C) permit extended shelf life in varied environments. Current consumption management ensures that the unit never exceeds its 3.5A per axis threshold, safeguarding both the driver and connected motors. Its efficient power utilization contributes to lower operational costs and improved energy efficiency across continuous and intermittent cycles.

Integration of the PB2D003R1UC into existing control systems is straightforward, leveraging standard RS-485 communications and parallel I/O signals. Its compact dimensions and lightweight design facilitate mounting within multi-axis cabinets or stand-alone enclosures, and the driver’s compatibility with PB SANMOTION Servo Motors accelerates commissioning procedures. Ideal for applications in robotics, packaging machinery, CNC equipment, and general industrial automation, this servo driver delivers precise control, reliable performance, and seamless integration into complex motion control networks.
