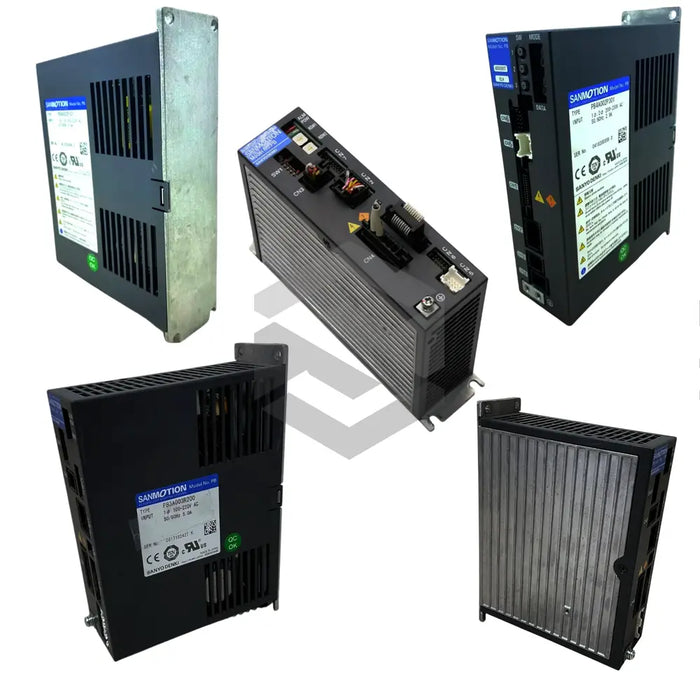

PB2D003R1UG
by Sanyo Denki
The Sanyo Denki PB2D003R1UG is a robust servo driver from the PB SANMOTION Servo Drivers series by Sanyo Denki. Engineered for precision motion control in industrial automation, it operates within an ambient temperature range of 0 to +55°C and withstands a dielectric strength of 1100 VAC for one minute to ensure electrical safety. With an insulation resistance of 5 MΩ or more at 500 VDC, this driver guarantees reliable isolation and protection against short-circuit faults. The primary function of the PB2D003R1UG is to deliver stable power and control signals to servo motors, maintaining accurate positioning and torque during complex motion profiles.
Incorporating a 24 V DC input power supply, the PB2D003R1UG draws approximately 3 A for its main circuit and 0.5 A for its control logic, providing consistent energy delivery for both motor actuation and command processing. Communication is facilitated through versatile RS-485 and parallel I/O interfaces, allowing seamless integration with PLCs and motion controllers. The unit features a built-in holding brake control that secures motor shafts during power interruptions or emergency stops, while impact resistance of 20 m/s² and vibration resistance of 5 m/s² (10–55 Hz, 2 h/axis) ensure durability in high-stress environments.
Designed for compact installations, the driver mounts via 4× M3 holes and maintains performance at altitudes up to ≤1000 m with relative humidity up to 90% RH. It meets Class III protection standards and supports storage temperatures from –20 to +70°C, making it adaptable to varying field conditions. By combining stringent insulation tests, robust mechanical resistance, and flexible interface options, the PB2D003R1UG enhances system reliability and extends equipment service life, delivering efficient and accurate motion control for modern industrial applications.
