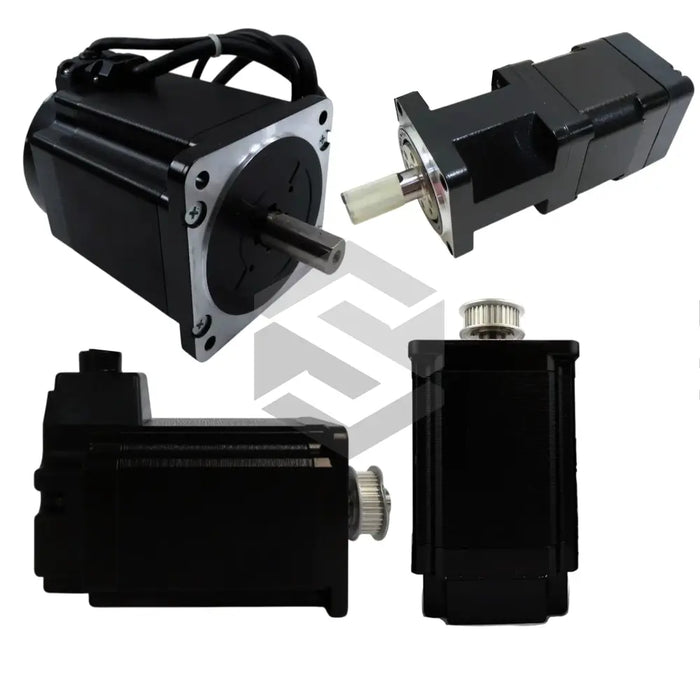

PBM282FGEE50
by Sanyo Denki
The Sanyo Denki PBM282FGEE50 servo motor belongs to the PB SANMOTION Servo Motors series and is engineered by Sanyo Denki to deliver precise motion control in industrial automation environments. With a motor mass of 0.28 kg and a rotor inertia of 0.0091 kg·m², this lightweight unit minimizes system inertia and enhances dynamic response. Designed for low-power applications, the PBM282FGEE50 operates on a power supply voltage of 24 VDC ±15% and consumes only 3.6 W, making it ideal for compact, energy-conscious installations where reliable performance is essential.
In terms of technical specifications, the PBM282FGEE50 offers a maximum stall torque of 0.055 Nm and a static friction torque of 0.049 Nm or higher, ensuring accurate holding and minimal slip under load. The motor can withstand an allowable radial load of 33 N and an allowable thrust load of 9.8 N, demonstrating structural robustness. Rapid braking is facilitated by a brake release time of 20 ms or less and a brake operating time of 20 ms or less, enabling quick stops and enhanced safety. The excitation circuit draws a stable excitation current of 0.15 A, and the integrated design supports consistent torque generation for repeated cycles.
Additional features include compatibility with driver unit model PB3D003M200 and flexibility through alternative configurations such as PBDM282-B and PBM282FCE20, allowing engineers to tailor the system to specific requirements. The motor’s compact form and low power consumption promote efficient operation and reduced thermal stress, while its mechanical resilience ensures long service life in demanding conditions. By combining lightweight construction, precise control, and energy efficiency, the PBM282FGEE50 offers significant benefits in terms of reduced maintenance, enhanced positioning accuracy, and overall system reliability for modern industrial applications.
