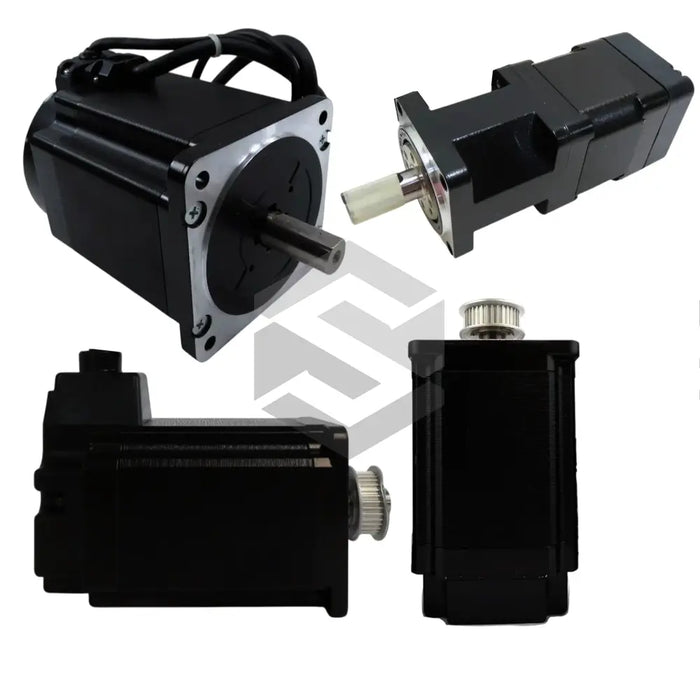

S image of PBM423FHMK30-M

PBM423FHMK30-M

by Sanyo Denki
$786.42 - $786.42
$786.42
$786.42 - $786.42
$786.42

Available, Shipping Varies

The PBM423FHMK30-M servo motor from Sanyo Denki is part of the PB SANMOTION Servo Motors series. It features a compact flange size of 42×42 mm with a motor length of 95.1 mm, an allowable thrust load of 1150 N, an allowable radial load of 275 N, and a protection rating of IP40. The motor delivers a rated torque of 5 Nm with a peak torque of 11 Nm and operates on single-phase 100-115 VAC or three-phase 200-230 VAC power. Weighing just 0.54 kg, it uses a harmonic drive encoder for precise position feedback.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Allowable Radial Load

275 N

Allowable Speed

35 min⁻¹

Allowable Thrust Load

1150 N

Connection Type

Lead wire with connector

Encoder Type

Harmonic drive

Flange Size × Motor Length

42×42×95.1 mm

Gear Ratio

1:100

Included Component

Driver PB4A002P300 or PB4A002R300

Maximum Torque (instantaneous)

5 (11) Nm

Motor Weight

0.54 kg

Operating Humidity Range

95% RH max. at 40°C

Operating Temperature Range

0-40°C

Power Supply Type

Single-phase 100-115 VAC or 3-phase 200-230 VAC

Protection Rating

IP40
