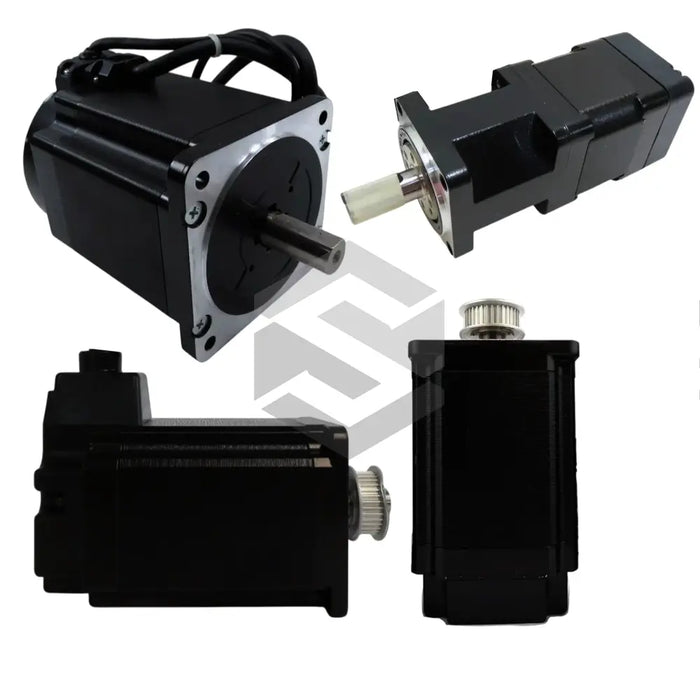

PBM503DXA24
by Sanyo Denki
The Sanyo Denki PBM503DXA24 servo motor from the PB SANMOTION Servo Motors series is engineered for high-precision motion control in demanding industrial automation environments. With an impact resistance rating of 20 m/s² and a built-in holding brake control function, this device ensures secure, accurate positioning under sudden loads or interruptions. Capable of a command resolution up to 32,000 p/r, the PBM503DXA24 delivers smooth, fine-grained operation, making it ideal for applications requiring exact speed and position control.
Incorporating versatile power input options, the PBM503DXA24 accepts single-phase 100–115 VAC or 200–230 VAC, as well as three-phase 200–230 VAC, all at 50/60 Hz (–15%, +10%). Electrical robustness is guaranteed by a dielectric strength of 1500 VAC, 1 min (input–frame) and an insulation resistance of ≥10 MΩ at 500 VDC. Designed to withstand industrial conditions, the motor meets Overvoltage Category II and Pollution Degree 2 standards, ensuring resilience against electrical surges and environmental contaminants.
The PBM503DXA24 operates reliably across a temperature range of 0 to +55°C and can be stored between –20 to +65°C. It performs at altitudes up to 1000 m above sea level, with ambient humidity up to 90% RH (non-condensing). Vibration resistance of 5 m/s² across X, Y, and Z axes for 2 hours each further enhances durability in high-vibration settings. With selectable power supply currents of 2.5 A, 4.5 A, or 6 A, this servo motor optimizes energy usage and reduces downtime. Its compliance with industry standards and robust design provides exceptional efficiency and long-term reliability, making it a valuable asset in advanced industrial automation systems.
