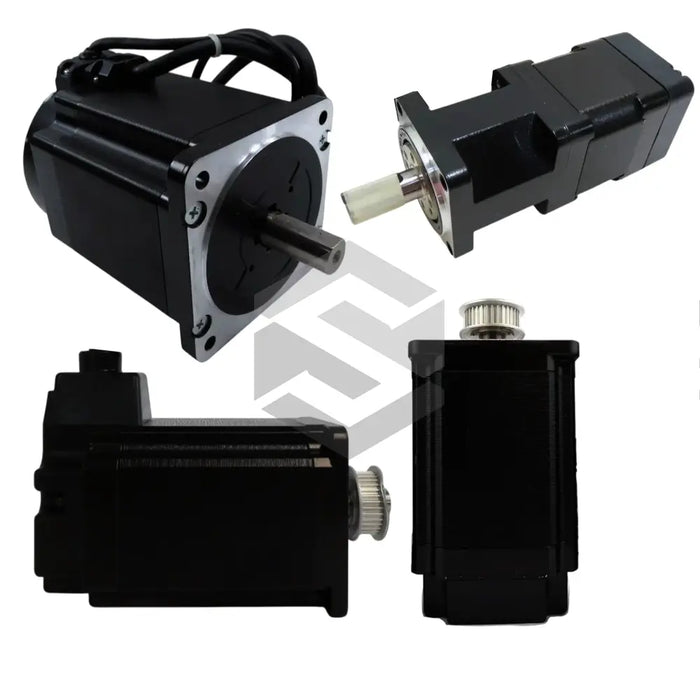

PBM603DXC20
by Sanyo Denki
The Sanyo Denki PBM603DXC20 is a precision servo motor from the PB SANMOTION Servo Motors series, designed as a closed-loop stepper motor for high-accuracy industrial automation. Featuring an 86 mm flange diameter and a maximum static friction torque of 1.3 N·m, this motor delivers reliable positioning performance. Operating primarily as a motion control solution, it ensures consistent speed and torque for applications requiring precise start-stop and indexing functions.
Built around a robust digital/analog compatible drive interface, the PBM603DXC20 incorporates an integrated encoder feedback system for closed-loop control, guaranteeing accurate synchronization and minimal step loss. The motor’s excitation current of 0.25 A and power consumption of 6 W make it highly energy efficient, while its two-phase winding architecture and single shaft configuration simplify integration into compact assemblies. The combination of encoder feedback and stepper drive technology sets this motor apart by enabling both smooth microstepping and rapid dynamic response.
Constructed for durability, this motor withstands the demands of continuous industrial operation with minimal maintenance. Its compatibility with standard digital or analog drives ensures seamless integration into existing control systems without additional converters. At a weight of just 0.85 kg, the PBM603DXC20 provides a high power-to-mass ratio, enhancing machine efficiency. In industrial contexts, its precise control, low power draw, and solid mechanical design translate into reduced downtime, improved throughput, and consistent production quality.
