S image of PBM604DXC20

PBM604DXC20

by Sanyo Denki
$1,374.97 - $1,374.97
$1,374.97
$1,374.97 - $1,374.97
$1,374.97

In Stock, Ships 1 - 3 Days

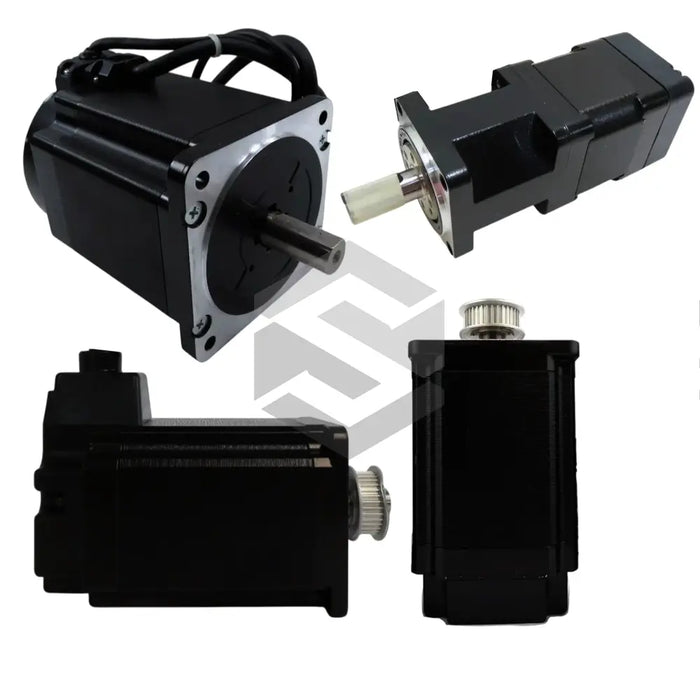

The PBM604DXC20 from Sanyo Denki offers a motor size of 60 mm square and a length of 102.3 mm. As part of the PB SANMOTION Servo Motors series, it delivers a maximum stall torque of 1.9 Nm and operates on a 24/48 VDC B110% supply.

It supports both incremental (INC-E) and absolute (ABS-E, ABS-R II) encoder systems with cable lengths up to 30 meters and allows wiring lengths up to 50 meters using low-resistance or multiwire configurations. It can withstand allowable radial loads of 167 N and operates in temperatures from 0 B0C to +55 B0C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Allowable Radial Load

167 N

Allowable Thrust Load

14.7 N

Compatible Driver Model Number

PB3D003M200

Max Operating Altitude

≤1000 m above sea level

Motor Dimensions

60×60 mm

Motor Length

102.3 mm

Motor Mass

1.42 kg

Operating Temperature

0°C to +55°C

Rotor Inertia

0.84 kg·m²

Set Model Number

PBDM604

Stall Torque (Max)

1.9 Nm

Storage Temperature

-20°C to +65°C

Supply Voltage

24/48 VDC ±10%

Vibration Acceleration

5 m/s²

Vibration Duration

2 hr per axis

Vibration Frequency

10–55 Hz
