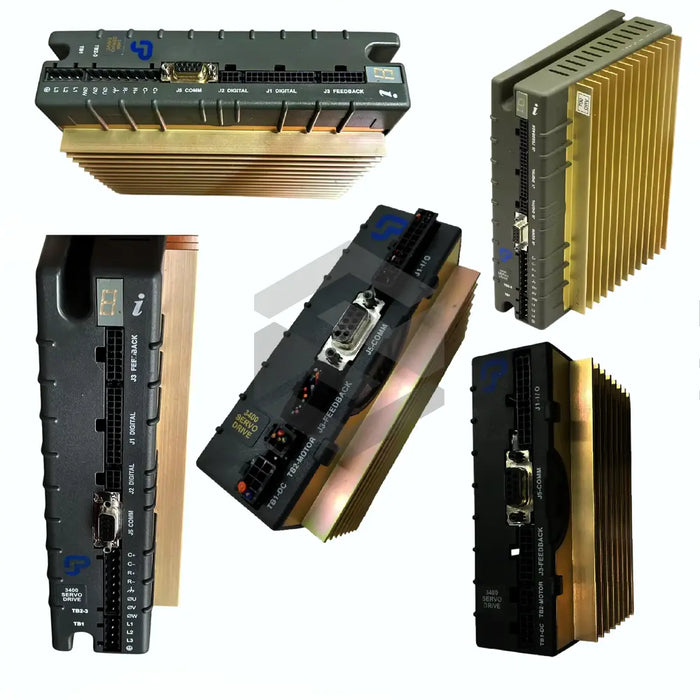

The pc3402di-001-e from Pacific Scientific delivers 214 W continuous and runs on 18–74 VDC. Part of the PC3400 Servo Drives, it uses RS-232/RS-485 and drives brushless or brush DC motors. It offers seven digital inputs, three digital outputs, and buffered A/B differential encoder outputs.
It supplies 2.5 ARMS continuous and 5 ARMS peak with 102.4 µs loop updates. Analog inputs are ±10 VDC at 16-bit resolution. ToolPAC software with wizards enable precise setup.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Ambient temperature rating
40°C
Analog inputs
2, ±10 VDC, 16-bit
Communication protocols
RS-232, RS-485
Control methods
Current, Velocity, Step/Dir, Quad. Encoder
Current loop update rate
102.4 µs
Current rating
2.5 ARMS cont., 5 ARMS peak
Digital inputs
7 (1 Enable, 3 GP, 3 HSI)
Digital outputs
3 (Drive-OK/Brake, 2 GP)
Encoder outputs
Buffered A/B differential
HSI input signal level
0-5 VDC
Input voltage
18-74 VDC
Output power (continuous)
214 W
Position update rate
2.0 ms
Software
ToolPAC with Wizards
Special feature
Distributed feedback
Supported motor types
Brushless DC, Brush DC
Velocity update rate
408 µs
