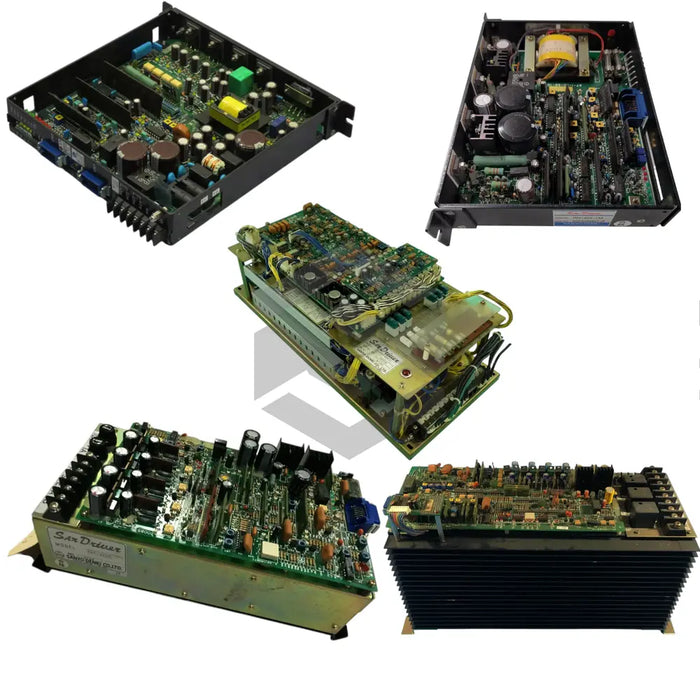

PDT-093C-20
by Sanyo Denki
The Sanyo Denki PDT-093C-20 is a versatile and robust member of the PDT San Driver Servo Drives family, designed by Sanyo Denki to deliver precise motor control in industrial automation environments. Engineered for a 230 VAC input voltage, this drive supports a power rating of 1.2 kW and can supply up to 5 A output current, fitting medium to high power AC servo motors. Its compact housing, weighing approximately 4.5 kg, facilitates straightforward integration into control panels and machinery racks. The unit accommodates standard 50/60 Hz operation and maintains peak performance at altitudes up to 1000 meters without derating. With a humidity tolerance of 10% to 90% non-condensing, it is built to withstand demanding ambient conditions while ensuring consistent operation.
Performance optimization is achieved through advanced PWM (Pulse Width Modulation) control method, enabling rapid response in position, velocity, and torque control modes. The drive boasts an impressive efficiency of 95%, reducing energy consumption and heat generation for sustainable operation. Integrated RS485 communication interface with support for Modbus RTU (or proprietary serial protocols) enables seamless parameter configuration, real-time monitoring, and diagnostics. Feedback support for high-resolution encoders ensures precise motor positioning and smooth motion profiles across diverse load conditions. The air-cooled design provides reliable thermal management, while the drive’s internal architecture minimizes electrical noise to maintain stable torque delivery.
Built to support Sanyo Denki AC servo motors, the PDT-093C-20 offers both reliability and scalability for complex automation systems. It incorporates robust protective features that prolong motor and drive lifespan, enhancing mean time between failures (MTBF) in industrial settings. Integration into plant networks is simplified through standardized communication protocols, allowing centralized control and data logging. Typical applications include pick-and-place robotics, conveyor system speed regulation, and precision assembly lines in packaging, semiconductor, and material handling industries. By balancing high performance with ease of installation and maintenance, the PDT-093C-20 establishes itself as an essential component for modern industrial automation solutions.
