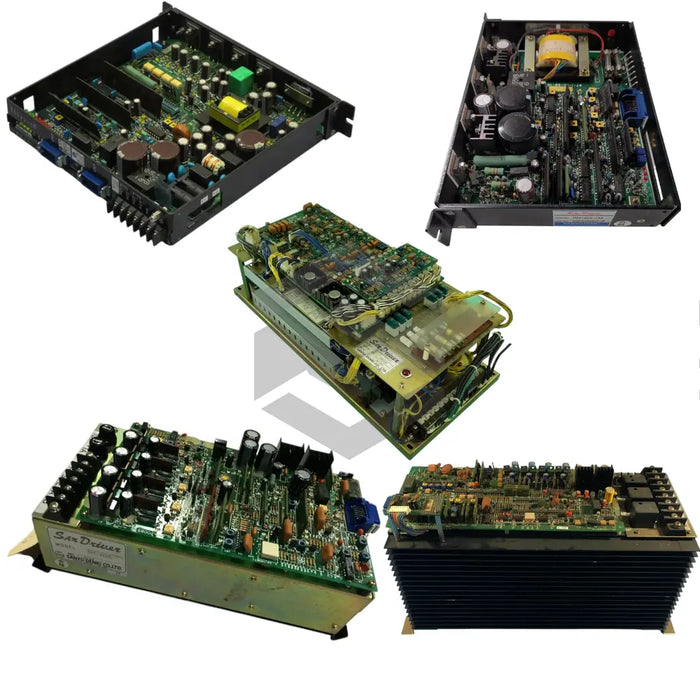

PDT-A01-15
by Sanyo Denki
The Sanyo Denki PDT-A01-15 from the PDT San Driver Servo Drives series is a high-performance servo amplifier designed for precise motor control in industrial automation. This unit accepts an Input Voltage Range of AC 100 V to 230 V at a Rated Frequency of 50/60 Hz, delivering reliable operation across diverse power systems. With a Power Rating of 5 kW and a maximum current capacity of 15 A, the PDT-A01-15 provides the torque and stability required for demanding servo applications. Its core function is to convert AC input into a controlled 2-phase AC output, ensuring smooth acceleration and deceleration of connected motors.
Engineered with advanced control and monitoring features, the PDT-A01-15 offers an output of 2 Phase AC for efficient power delivery. Built-in protection systems include Overcurrent (OC), Overload (OL) and Position Error Detection (PE) to guard against fault conditions. The unit integrates multiple status indicators—POWER, RGSO for regenerative circuit status, and AL for general alarms—enabling rapid diagnostics. Manual and automatic Reset Functions simplify recovery from fault states. Fine-tuning is achieved through dedicated adjustments for speed (S-ADJ) and gain (G-ADJ), while test points facilitate torque and armature current monitoring. Major internal components such as large electrolytic capacitors and a PS-10380 transformer ensure voltage regulation, and robust fuses protect critical circuits from overload.
Designed for durability in industrial environments, this servo amplifier carries a Protection Class rating of IP54, safeguarding against dust ingress and water spray. The operating temperature range of –10°C to 40°C ensures reliable performance under variable thermal conditions. Additional voltage monitoring up to 230–400 V maintains stable operation during line fluctuations. By combining precise torque control, comprehensive protection features and a rugged design, the PDT-A01-15 enhances system efficiency and uptime. Its versatile functionality and robust safeguards make it an ideal solution for assembly lines, robotics, packaging machinery and other industrial automation applications.
