PDT-J01-102CE

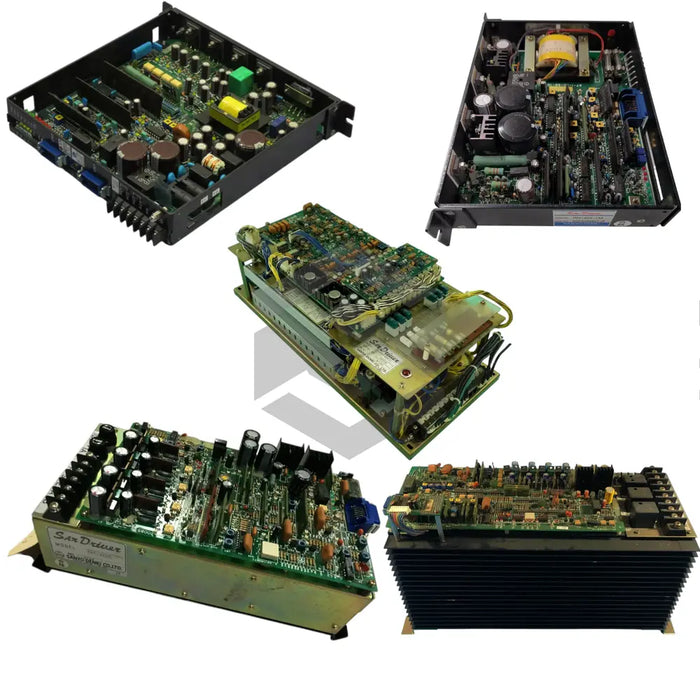

The PDT-J01-102CE from Sanyo Denki stands out in the PDT San Driver Servo Drives series as a robust industrial-grade servo drive optimized for precision motor control. This module supports an Input Voltage of AC 100 V and delivers a Output Voltage of AC 35 V to the motor, with an Output Current Rating of 2.5 A. Its compact form factor houses a rugged metal enclosure engineered for industrial automation environments. The unit’s design includes clear LED indicators for status monitoring and a well-organized internal PCB layout for reliable operation. The drive accommodates a wide Operating Temperature Range of –10°C to +55°C for consistent performance in variable conditions.

Technical capabilities of the PDT-J01-102CE are highlighted by versatile AC Input Terminals (AC1–AC4) that allow flexible power configurations and seamless integration. The drive’s Input Current Rating of 0.3 A ensures efficient consumption from the supply, while the Output Current Rating of 2.5 A delivers sufficient torque for most mid-sized servo motors. Dual D-sub interfaces—Connector CN1 (15-pin) and Connector CN2 (25-pin)—provide robust channels for control signals and feedback loops, supporting high-speed communication and precise position regulation. Motor power connections are made via dedicated Motor Terminals (MA, MB) to ensure secure, low-impedance pathways. The device’s internal circuitry utilizes standardized design principles to maintain signal integrity and minimize electromagnetic interference.

Operational features of this servo drive deliver real-world benefits where reliability and maintainability are critical. The array of status LEDs indicates power presence, RGSO, reset conditions, and overcurrent warnings, enabling rapid fault diagnosis on the factory floor. The black metal casing offers mechanical protection against dust and vibration while promoting heat dissipation. The internal green PCB is methodically arranged to facilitate serviceability and reduce downtime during maintenance. Safety is enhanced through overcurrent protection and clear diagnostic feedback, which together improve system uptime and lower operational costs in continuous-duty applications.

Integration of the PDT-J01-102CE into automation systems is straightforward thanks to its standardized connectors and mounting provisions. The drive communicates easily with PLCs and motion controllers via its D-sub ports, while the multiple AC input terminals accommodate various power distribution schemes. Its moderate size and thermal stability make it suitable for installation in control panels, machine tools, packaging lines, and robotic workcells. Engineers will appreciate the drive’s combination of performance, diagnostics, and flexible integration options for demanding industrial environments.
