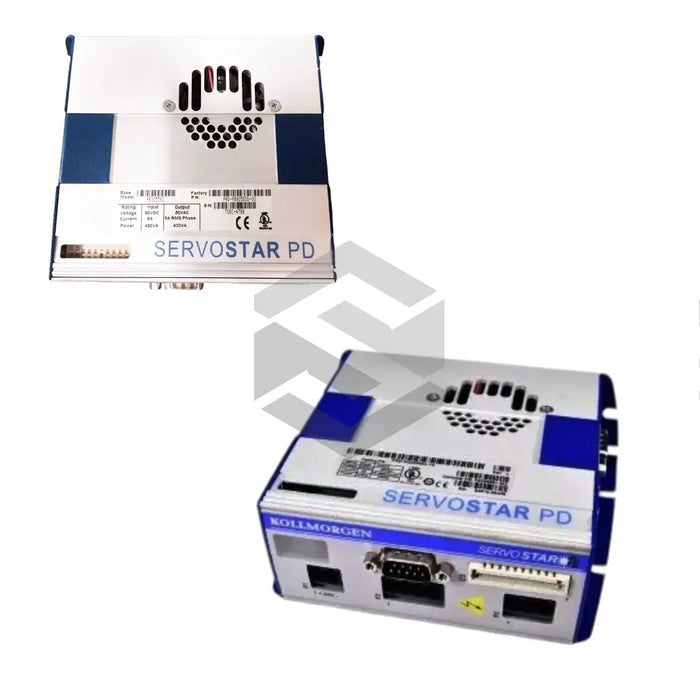

PE210561-MZ
by Kollmorgen
The Kollmorgen PE210561-MZ servo drive is a sophisticated component within the PD Servostar Servo Drives series, designed by Kollmorgen for high-precision industrial automation. This unit features a 16 kHz PWM frequency and delivers a continuous current of 6 Amps with peak current of 12.5 Amps at both 24 V and 80 V, ensuring reliable torque delivery. With a compact unit weight of 0.55 kg, it integrates seamlessly into motion control systems to manage motor speed, position, and torque with exceptional accuracy.
Built to strict technical standards, the PE210561-MZ operates across an ambient humidity range of 10% to 90% and accepts a +24 VDC logic input voltage (22–27 V). It sustains a maximum surge current for soft start of 30 Amps while its mounting hardware must be torqued to 20 lb-in (2.26 N-m). The drive maintains stable performance in environments between 5°C and 45°C and can be stored safely from 0°C to 70°C. Dual continuous current ratings at 24 V and 80 V highlight its versatility for varied voltage architectures.
Engineered for durable and efficient operation, this drive supports rapid peak currents for both 500 ms and 2 s intervals, enabling brief high-load events without performance loss. Its wide operating and storage temperature windows and broad humidity tolerance enhance reliability in controlled industrial settings. The lightweight design reduces mechanical stress and simplifies mounting. By delivering precise current control and robust surge handling, the PE210561-MZ optimizes motor responsiveness and energy efficiency, making it an ideal solution for demanding industrial applications.
