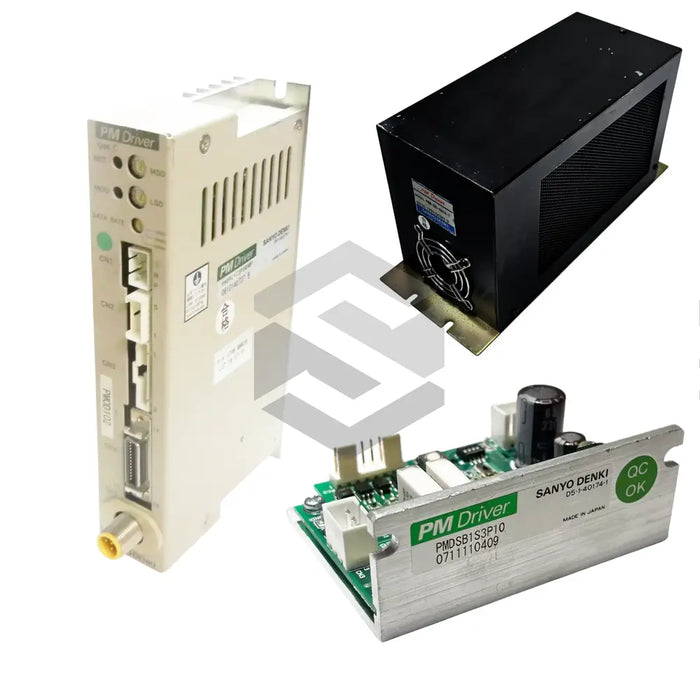

PM-UDPD2A01-20

The PM-UDPD2A01-20 driver from Sanyo Denki is a robust member of the PM Drivers series designed for demanding industrial automation environments. This high-performance unit delivers 3.5 kW power through a continuous current capacity of 40A, with a peak current rating of 73A. It operates reliably across a broad 24V DC to 48V DC voltage range and employs natural convection cooling to maintain optimal operating temperatures. Weighing merely 3.5 kg, the compact design balances high power density with manageable form factor. The driver’s integration into complex systems is facilitated by its industrial-grade construction and adherence to stringent performance standards.

Technical prowess is at the core of the PM-UDPD2A01-20, starting with its Continuous Current rating of 40A and a Peak Current output of 73A for short-duration load surges. It supports a wide Voltage Range spanning 24V DC to 48V DC, enabling compatibility with diverse power architectures. The driver’s Feedback Type features an Incremental encoder complemented by Hall sensors for precise rotor position sensing and smooth torque delivery. Reliable system communication is ensured via dual Interface options: RS232 and RS485, granting flexible connectivity across modern control networks. Rated at a Protection Class IP20, the unit offers solid protection against internal contact and modest ingress, making it suitable for controlled industrial enclosures.

Operational reliability is enhanced by the PM-UDPD2A01-20’s Cooling Type of Natural convection, which minimizes maintenance needs by eliminating moving cooling parts. The maximum mechanical speed support of 7500 rpm allows for high-dynamic motion control in diverse applications. Designed to function in environments with up to 0.9 relative Humidity, it sustains performance in typical industrial atmospheres. At a compact weight of 3.5 kg, the driver simplifies mounting and reduces load on support structures, while its sturdy build ensures long-term service life. Engineers benefit from simplified thermal management and low acoustic noise, improving overall system uptime and operator comfort.

Integration into automation lines is straightforward thanks to standardized interfaces and flexible feedback options. The combination of RS232 and RS485 ports enables seamless integration with programmable logic controllers, motion controllers, and distributed I/O modules. High-resolution feedback technology using both Incremental encoder and Hall sensors supports closed-loop control algorithms for position, speed, and torque regulation. With its optimized packaging and industry-standard mounting provisions, the PM-UDPD2A01-20 can be deployed in conveyor systems, robotic workcells, packaging machinery, and other demanding industrial applications that require reliable, high-bandwidth motor control.
