PM-UDPD2A01-37
by Sanyo Denki

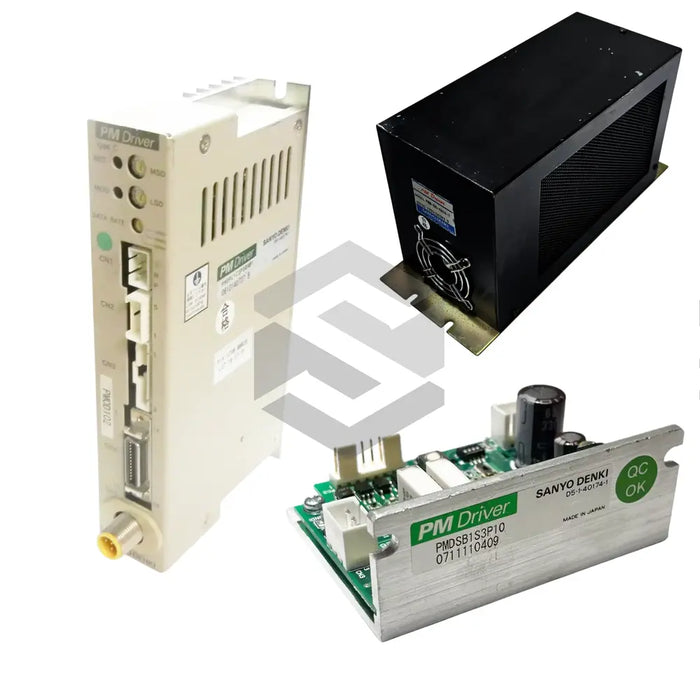

The Sanyo Denki PM-UDPD2A01-37 stepping driver, part of the PM Drivers series by Sanyo Denki, is engineered for precise motion control in industrial automation. Featuring an AC input voltage range of 200–240 V and a continuous output current of 2.0 A, this unit delivers up to 400 V output to stepper motors. Its primary function is to translate control signals into accurate motor currents, ensuring responsive and repeatable positioning. Equipped with forced air cooling and a fan-cooled design, it remains thermally stable under sustained load.
This driver supports a typical input of 200–240 VAC and an adjustable output voltage up to approximately 400 V, accommodating a wide range of motor requirements. It includes four 100 µF/63 V and one 470 µF/25 V electrolytic capacitors for energy smoothing, plus multiple inductors (L1–L3, L6, L10–L12) for noise suppression and current storage. The metallic enclosure rated IP20 (typical) provides mechanical strength, while the DIN rail mountable design simplifies panel integration. A DIP switch array and several RJ-style connectors allow configuration and networking, likely supporting protocols such as RS-485, CAN, or proprietary serial interfaces.
Built to endure industrial environments, the PM-UDPD2A01-37 offers over-voltage, over-current, and short-circuit protection and operates reliably from -10 °C to +60 °C. The sturdy metal case and mounting holes ensure robust installation in robotic systems or control cabinets. With a compact weight of approximately 1.2 kg, it balances durability and space efficiency. This stepping driver enhances system reliability, reduces maintenance, and enables high-precision motion control across diverse manufacturing applications.
