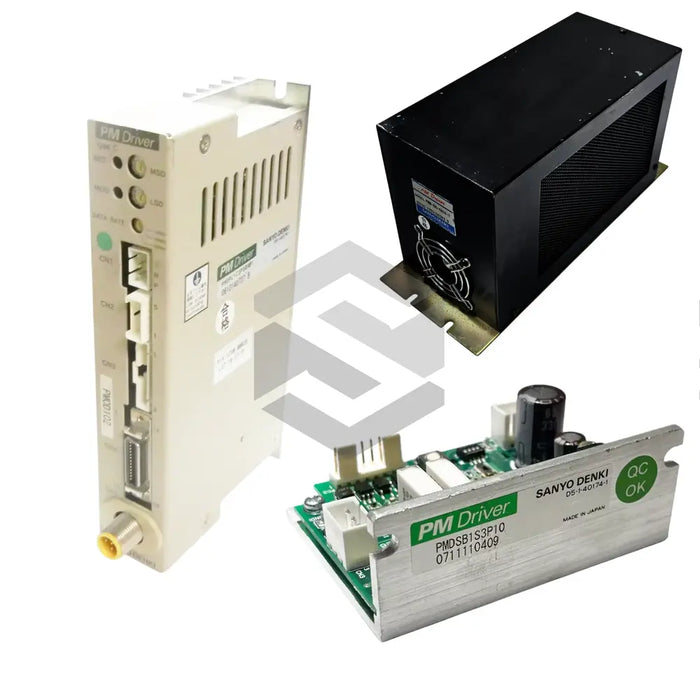

S image of PM-UPD1S06-30

PM-UPD1S06-30

by Sanyo Denki
$446.55 - $446.55
$446.55
$446.55 - $446.55
$446.55

In Stock, Ships Fast

The PM-UPD1S06-30 from Sanyo Denki features a compact SMD package sized 33.6 x 13.5 x 11.2 mm and a 6 VDC input voltage. Part of the PM Drivers series, it delivers 1.0 VDC at 30 A output and achieves 92% efficiency. The module operates at 500 kHz switching frequency and supports temperatures from -40 to +85 °C.

It includes OCP, SCP and OTP protection and offers both digital and analog control interfaces. The design is RoHS compliant. A one-year warranty backs the module.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Control Interface

Digital/Analog

Efficiency

92%

Input Voltage

6 VDC

Line Regulation

±0.2%

Load Regulation

±0.5%

Mounting

SMD (Surface Mount Device)

Operating Temperature Range

-40°C to +85°C

Output Current

30 A

Output Voltage

1.0 VDC

Package Size

33.6 x 13.5 x 11.2 mm

Protection Function

OCP, SCP, OTP (Over Current, Short Circuit, Over Temperature)

Rohs Compliance

Yes

Switching Frequency

500 kHz

Type

Power Module

Warranty

One-year
