PMB22B-10100-00

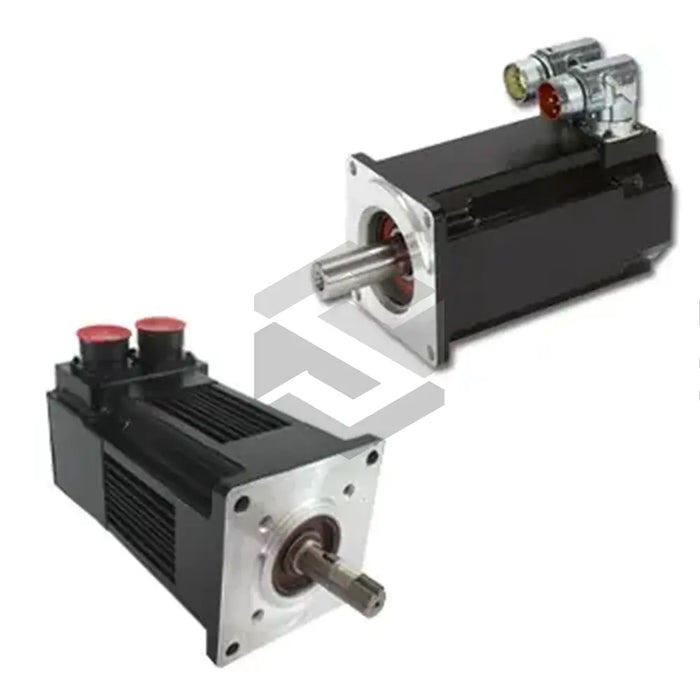

The PMB22B-101100-00, a product of Pacific Scientific, is a high-performance brushless servo motor, tailor-made for operations necessitating a robust and efficient motor. It falls into the category of NEMA 22 frame size, with a compact, space-efficient design, making it optimal for light industrial applications. Constructed on IP40 standards, it boasts a rugged, durable exterior capable of withstanding adverse conditions. The servo motor incorporates Neodymium Iron Boron magnets, noted for their exceptional torque density. It offers industry-standard mounting options, double shielded bearings, NEMA compatibility, and selection freedom for stack length and windings, which are crafted with Class F insulation. The motor can operate with either encoder or resolver feedback. It possesses an 8 pole synchronous construction and can reach speeds up to 10,000 RPM and a maximum torque of 1.40 Nm. The motor is designed for maximum operational power, compatible with AMP mini Mate-N-Lock and MS-type connectors on 18-inch leads.
