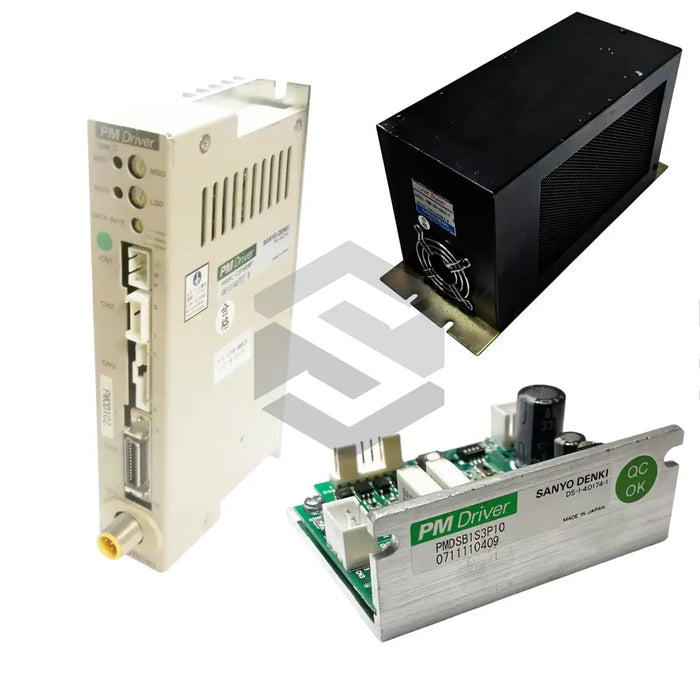

PMDPA1A3P40

The PMDPA1A3P40 controller module from Sanyo Denki is an integral component of the PM Drivers series, engineered for precision motion control in demanding industrial environments. Designed for compatibility with a wide input range, it accepts 100-240 VAC input and provides a regulated DC 24 V ±10% output. The module features electrically isolated interfaces and network connectivity through two CAN interfaces, ensuring robust communication and system interoperability. With a nominal power consumption of 14.5 W, the PMDPA1A3P40 delivers energy-efficient operation without compromising performance. Its compact footprint and lightweight construction enhance system design flexibility and simplify integration into existing automation frameworks.

Performance optimization is achieved through a suite of advanced technical features. The module supports Automatic current reduction, dynamically lowering power draw during idle periods to maximize efficiency. It accommodates a peak source current of 2 A and implements a pulse input system for high-resolution command execution. Critical safety is maintained via an insulation resistance ≥10 MΩ at 500 V DC measured between input terminals and cabinet, and the device has passed a DC 500 V megger test to verify dielectric integrity. Additionally, the PMDPA1A3P40 exhibits full vibration resistance and mechanical shock protection, ensuring stable performance in mobile or high-vibration applications. Its operational temperature range of 0 to +50 °C and storage capability down to -20 to +70 °C allow reliable use in varied thermal conditions.

Built for continuous industrial automation, the PMDPA1A3P40 delivers proven reliability across diverse applications. It maintains full functionality within an operating humidity range of 35–85% RH (no condensation) and remains stable under long-term exposure to typical factory atmospheres. The module’s lightweight mass of 0.12 kg facilitates installation in compact assemblies and minimizes mechanical load. As part of Sanyo Denki’s PM Drivers series, it integrates seamlessly with existing motion control platforms and drive networks, making it ideal for precision machinery, robotics, packaging lines, and other automated systems. With its combination of robust protection, dynamic performance features, and streamlined design, the PMDPA1A3P40 sets a new standard for efficient, reliable motion control.
