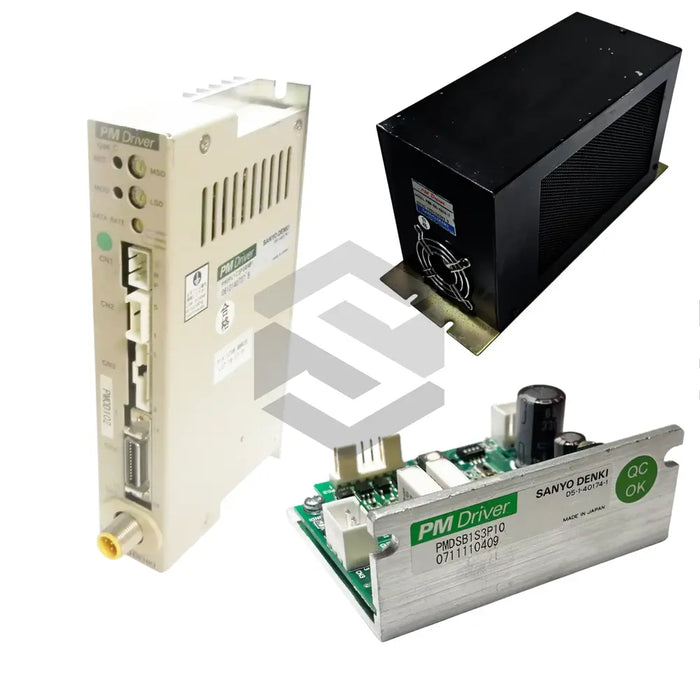

The Sanyo Denki PMDPC1S3P01 is a versatile stepping driver in the PM Drivers series, operating from a DC 24V ±10% supply and supporting up to 400 kpulses/s input frequency. Featuring selectable automatic current reduction, 2 A source current, vibration resistance of 0.5 G across XYZ axes and a compact weight of 0.12 kg, it delivers reliable performance for industrial automation.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Automatic Current Reduction
Selectable
Command Pulse Input
Photocoupler, 330Ω, H:4.0–5.5V L:0–0.5V
Impact Resistance
NDS-C-0110 Sec.3.2.2 div. C
Input Voltage
DC 24V ±10%
Insulation Resistance
≥10 MΩ (DC 500V test)
Max Input Frequency
400 kpulses/s
Operating Humidity
35–85% RH (no condensation)
Operating Temperature
0 to +50°C
Source Current
2 A
Step Angle Selection
1–80 divisions
Storage Humidity
10–90% RH (no condensation)
Storage Temperature
-20 to +70°C
Vibration Resistance
10–55Hz, 0.5G XYZ axes, 2h
Weight
0.12 kg (0.26 lbs)
Withstand Voltage
AC 500V, 1min between input & cabinet
