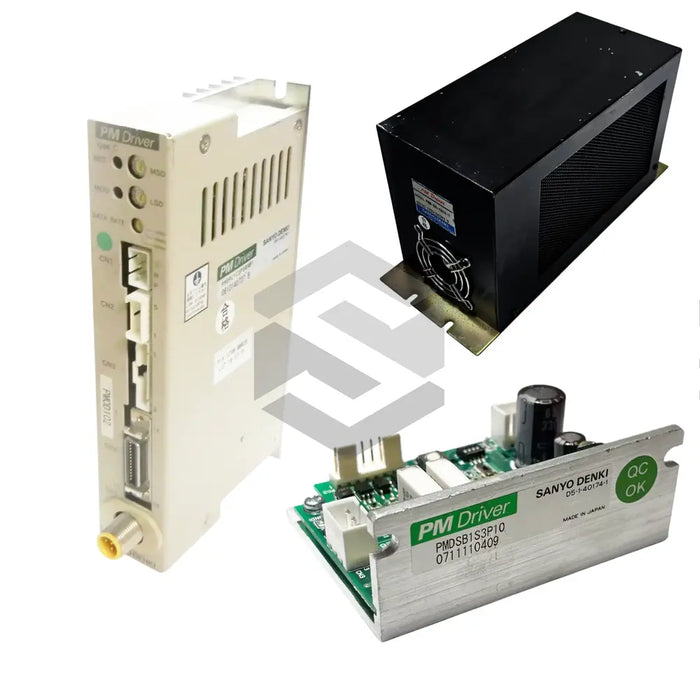

S image of PMDPC1S3P10

PMDPC1S3P10

by Sanyo Denki
$617.29 - $1,144.00
$617.29
$617.29 - $1,144.00
$617.29
The PMDPC1S3P10 driver from Sanyo Denki's PM Drivers series is a compact surface mount device for high-speed switching. It features a 30 V input, 1 A current rating, 50 ns reverse recovery time and operates from –55 °C to 150 °C. Measuring 3.0 × 2.0 × 1.0 mm, it has 60 °C/W thermal resistance and a 150 °C maximum junction temperature. The SMD unit is RoHS compliant and benefits from a 1000 hour burn-in reliability test.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Current Rating

1 A

Forward Voltage Drop

0.6 V typical

Frequency Response

Suitable for high-speed switching

Maximum Junction Temperature

150 °C

Mechanical Dimensions

3.0 mm × 2.0 mm × 1.0 mm

Mounting Style

Reflow soldering compatible

Operating Temperature Range

−55 °C to 150 °C

Part Package

Surface Mount Device (SMD)

Reliability

1000 hr burn-in

Reverse Recovery Time

50 ns

Rohs Compliance

Lead-Free, RoHS compliant

Thermal Resistance (junction-to-ambient)

60 °C/W

Voltage Rating

30 V
