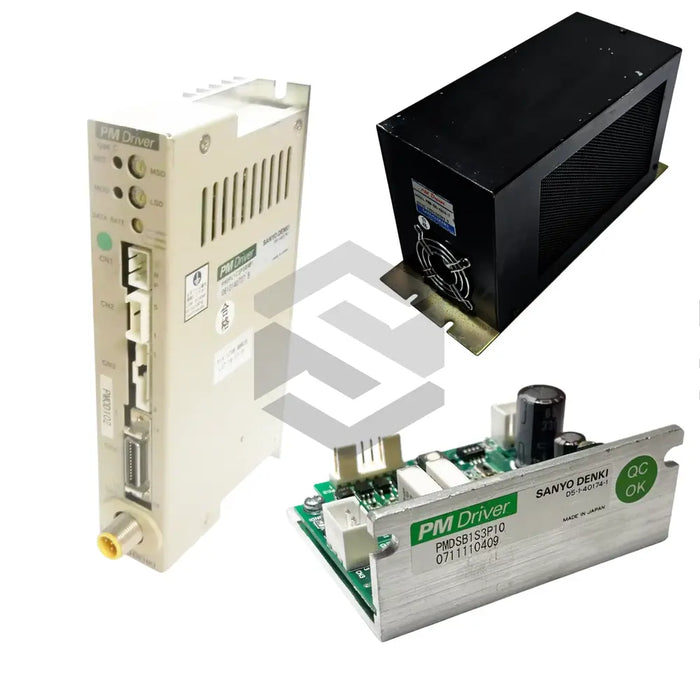

S image of PMDSA1S3P01

PMDSA1S3P01

by Sanyo Denki
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The Sanyo Denki PMDSA1S3P01 from the PM Drivers series is a compact PM driver designed for precise industrial automation. It delivers a holding torque (2-phase Energization) of 0.44 N·m, a rated current of 3 A/phase with wiring resistance of 1.3 Ω/phase and winding inductance of 1.6 mH/phase. Light and robust at 0.5 kg, it accepts a DC24V power source and operates from -10 to +50°C. Compatibility with 3-phase, 50mm sq. stepper motors, photo coupler input and a VHR-3N connector ensures seamless integration. An insulation resistance of not less than 100 MΩ provides electrical stability for demanding motion control environments.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Applicable Driver

Photo coupler input

Connector

VHR-3N (Terminal: SVH-21T-P1.1)

Holding Torque (2-phase Energization)

0.44 N·m (62.31 oz·in)

Insulation Resistance

Not less than 100 MΩ (by DC500V megger)

Lead Wire Type

UL1430 AWG22

Mass (other Configuration)

0.65 kg (1.43 lbs)

Operational Temperature

-10 to +50°C

Power Source Voltage

DC24V

Pulse Interface

DC power input

Rated Current

3 A/phase

Rotor Inertia

0.12 x10-4 kg·m2 (0.66 oz·in2)

Stepper Motor Compatibility

3-phase, 50mm sq. (1.97 inch sq.)

Weight

0.5 kg (1.10 lbs)

Winding Inductance

1.6 mH/phase

Wiring Resistance

1.3 Ω/phase
