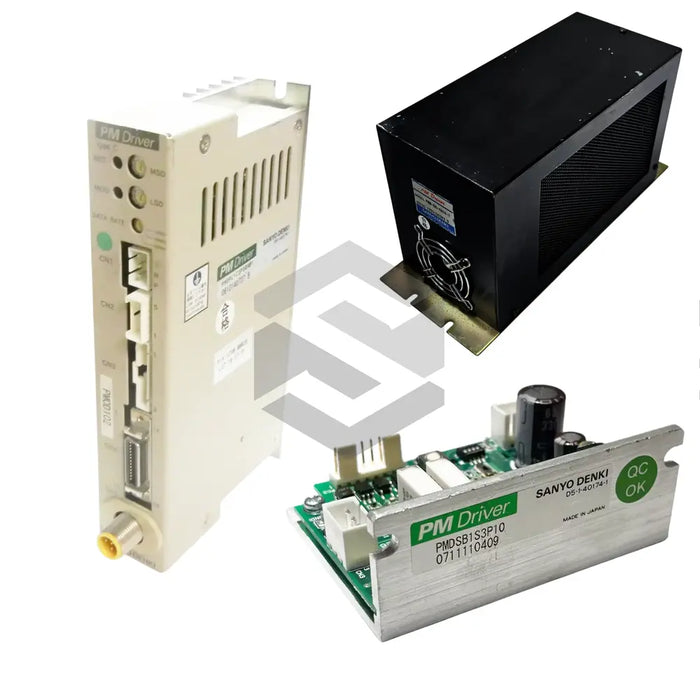

PMM-MD-53031-10
by Sanyo Denki
The Sanyo Denki PMM-MD-53031-10 is a precision 5-Phase Stepping Driver from the PM Drivers series by Sanyo Denki. It operates on a main supply of DC 24/36 V ±10%, 3 A and features a micro-step resolution selectable up to 1/250 divisions via a 16-position rotary switch. The driver’s CMOS input interface and a maximum pulse frequency of 400 kpulse/s enable high-speed, accurate motion control in industrial automation applications. Its compact design and lightweight mass of 0.31 kg make it ideal for integration into space-constrained systems.
Equipped for detailed configuration, the driver accepts a DC 5 V ±5%, 0.15 A control supply and provides an input resistance of 330 Ω (CMOS). Input signal levels range from 0 – 0.5 V (low) to 4.0 – 5.5 V (high), ensuring compatibility with a broad range of controllers. The origin monitor output uses an open-collector transistor rated at Vceo ≤30 V, Ic ≤5 mA, supporting external monitoring systems. Users can select between "pulse and direction" and "2-input" modes via DIP switch, while automatic current reduction and multiple step angle settings deliver optimized performance under varying load conditions.
Designed for industrial reliability, the PMM-MD-53031-10 operates across an ambient temperature range of 0–50 °C (no condensation) and withstands standard factory environments. Its CMOS interface and open-collector origin output promote seamless integration with PLCs and motion controllers, while the durable design ensures long service life. The combination of high input frequency, fine micro-stepping, and robust control functions enhances positioning accuracy and torque smoothness. Ultimately, this driver boosts throughput and precision in automated production lines, making it a valuable asset for modern manufacturing systems.
