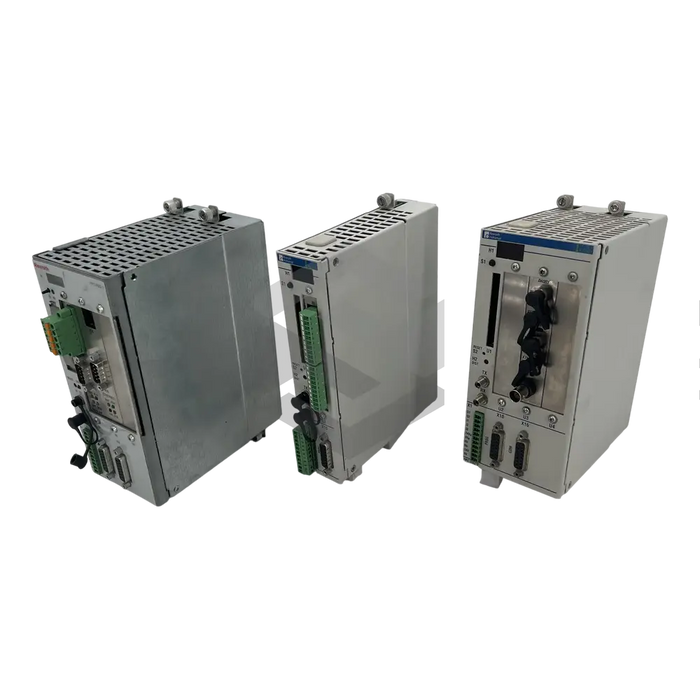

series image of PPC-P11.1N-N-N1-Q1-NN-FW

PPC-P11.1N-N-N1-Q1-NN-FW

by Bosch Rexroth Indramat
Request a quote
The PPC-P11.1N-N-N1-Q1-NN-FW, created by Bosch Rexroth Indramat, is a digitalized, multi-axis, standalone motion and logic controller for motors and machinery. Engineered to directly plug into a PC's PCI slot, it boasts a plug-and-play support card, negating the need for jumper allocation for memory management. The motion controller hosts an optional second interface card containing digital inputs and outputs and a communication port. Featuring a 32-bit PC bus connection and a frequency of 33 MHz, the unit includes optional extras like a front faceplate, limit switch card, and link ring. The logic control hardware has a 1-digital 7-segment display and an I/O drive support system, along with a 32 MB compact flash memory card and a Sercos interface capable of managing up to 40 drives. A Windows NT4.0 environment is required for installation, with a power supply tolerance ranging from 3.3V to +12V. This device operates optimally from 0°C to 45°C and between 860hPa and 1080hPa atmospheric pressures, up to an elevation of 1,500 meters.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Multi-axis stand-alone digitalized logic and motion control
  • PC Integration: PC PCI slot plug-in
  • Capabilities: Manage up to 40 drives
  • PC Bus Connection: 32 bits, 33 MHz frequency
  • Included Additions: Front faceplate, programmable limit switch card (NSW01), and DAQ03 link ring
  • Memory Type: Compact flash memory card, 32Mbs
  • Interface: 2 serial interface port, software-selectable baud rate of 9600-115200
  • Additional Features: Option card switch, Encoder interface card
  • Software Requirements: Windows NT4.0; SP6, VisualMotion 09vRS with the VentureCom RTX 4.3.2 version RUN-Time environment
  • Power Requirement: 3.3V to +12V power supply voltage
  • Operating Conditions: 0°C to 45°C (32-113°F), 860hPa to 1080hPa atmospheric pressure, up to elevation of 1500 meters
  • Mounting: Standard PC PCI bus.
