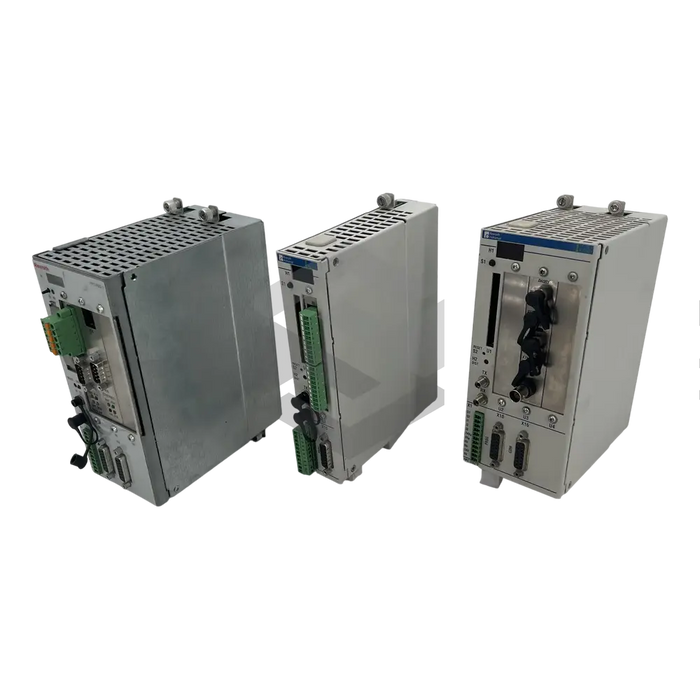

series image of PPC-P11.1N-N-P1-N1-NN-FW

PPC-P11.1N-N-P1-N1-NN-FW

by Bosch Rexroth Indramat
Request a quote
The PPC-P11.1N-N-P1-N1-NN-FW, manufactured by Bosch Rexroth Indramat, is a stand-alone, computerized multi-axis motion and logic controller designed for industrial machinery. Utilizing VisualMotion firmware GMP10, it plugs directly into a PC's PCI slot, with its unique feature being that it self-manages PC memory allocation eliminating the need for jumper configuration. Other features include digital inputs and outputs, a communication port, a 32-bit, 33Mhz PC bus connection, and a compact flash memory card with a 32 Mb capacity. It also supports up to 40 drives via its Sercos interface and has two serial interface ports with adjustable baud rates. Operating requirements include Windows NT 4.0; SP6 minimum, VisualMotion 09vRS, and the VentureCom RTX version 4.3.2 Run-Time environment. Power needs range from 3.3V to 12V, with an optimal operating temperature of 0-45°C and environmental conditions of 860hPa-1080hPa atmospheric pressure and 5-78% non-condensing humidity.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: PPC-P11.1N-N-P1-N1-NN-FW
  • Product Type: Stand-alone multi-axis motion and logic control
  • Firmware: VisualMotion GMP10
  • Interface Type: PCI slot
  • Memory Management Feature: Plug and play
  • Optional Interface Card: Digital inputs, digital outputs, communication port
  • Bus Connection: PCI, 32 bits at 33Mhz
  • Optional Features: Front faceplate, programmable limit switch (NSW01), link ring (DAQ03)
  • Display: 1-digital 7-segment display
  • Memory: 32 Mb compact flash
  • Drives Support: Up to 40 via Sercos interface
  • Serial Interface Ports: Two with a software-selectable baud rate of 9600-115200
  • Default Baud Rate: 9600
  • Additional Support: Programmable card switch, link ring, Encoder interface card
  • Operating Software: Windows NT 4.0
  • Software Version: SP6 minimum with VisualMotion 09vRS and VentureCom RTX version 4.3.2
  • Mounting: Standard PC PCI bus
  • Power Supply Voltage: 3.3V to +12V
  • Ambient Temperature: 0°C to 45°C (32-113°F) as per DIN 40 040 class KV
  • Atmospheric Pressure: 860hPa to 1080hPa
  • Maximum Operation Height: 1500 meters above sea level
  • Humidity: 5-78%, no condensation, according to DIN 40 040 class F.
