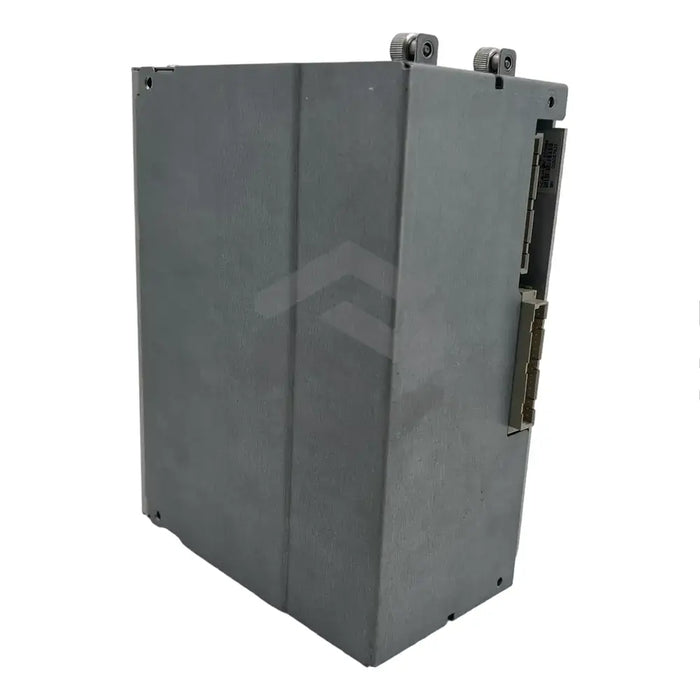

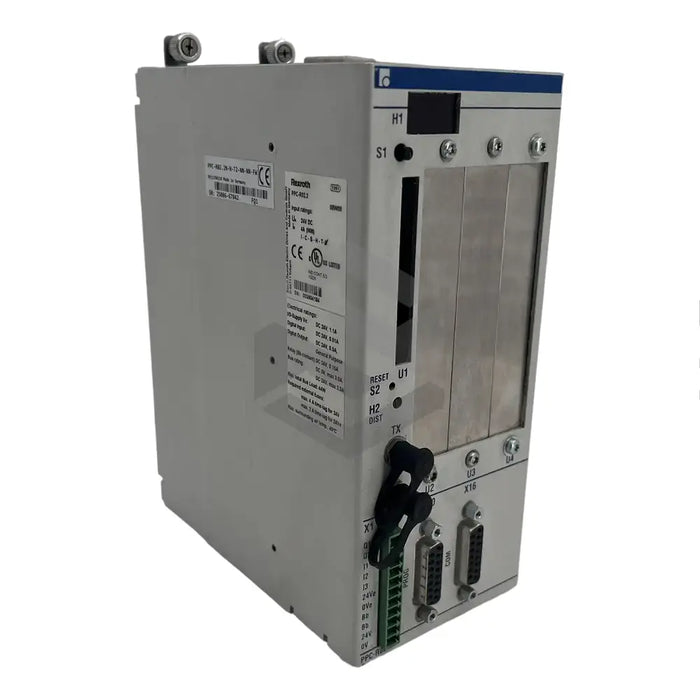

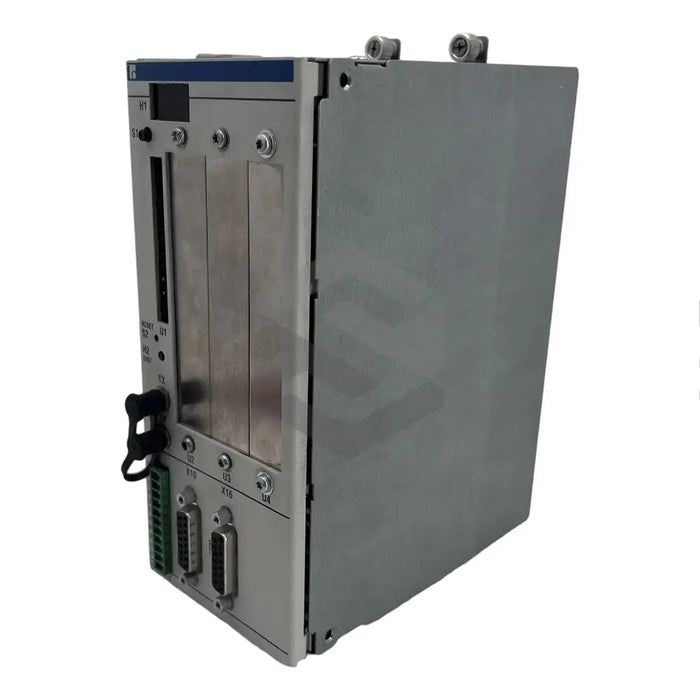

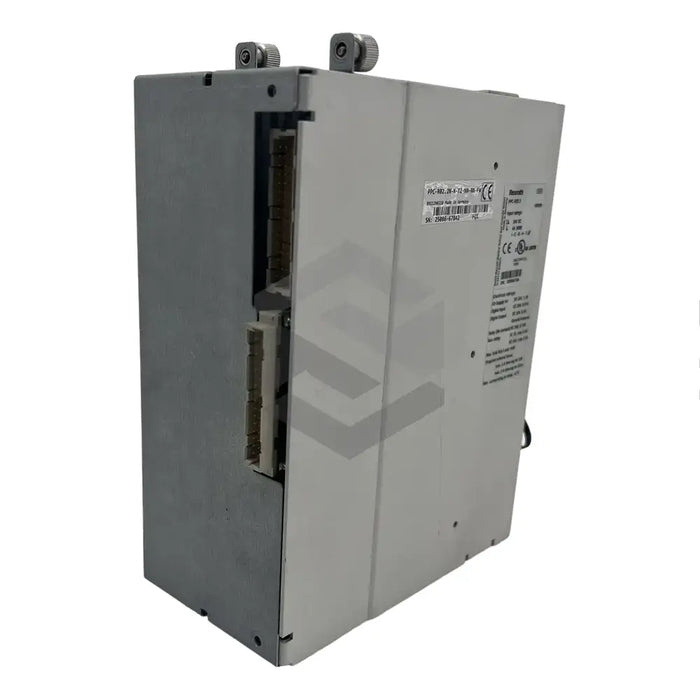

PPC-R02.2N

Original price $9,843.11 - Original price $9,843.11
Original price
$9,843.11
$9,843.11 - $9,843.11
Current price $9,843.11
In Stock, Ships 1 - 2 Days
Request a quote
The PPC-R02.2N is an innovative CNC control unit, produced by industry leader Bosch Rexroth Indramat, from the MTC2000 product series. This versatile unit doubles as a Programmable Logic Controller (PLC) and a state-of-the-art NC controller system. Measuring 83.7mm x 192mm x 150mm, it's installed within the machine's switch cabinet, employing an RMB02.2 dual rack, and is protected to IP 20 standard, guarding against the intrusion of objects over 12.5mm. The device's compatibility with BTA 20 and BTM 15/16 operator panels is facilitated by a 50m cable, with serial interface options including RS232, RS422, and RS485. The unit is powered by a 3.5V lithium battery, which maintains real-time clock and data in the PMM memory module. Supported by an axis processor module operating on the Sercos interface, it can control up to 8 drives in a standard configuration, or up to 32 drives at its maximum capacity.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: CNC Control Unit
  • Product Family: MTC2000
  • Dimensions: 83.7mm x 192mm x 150mm width x height x depth
  • Installation: Inside the switch cabinet of a machine
  • Rack Type: RMB02.2
  • Ingress Protection: IP 20
  • BT Bus Compatibility: BTA 20 and BTM 15/16 operator panels
  • Maximum Cable Length: 50 m
  • Interface Types: RS232, RS422, and RS485
  • Battery: 3.5 V lithium battery
  • Memory Module: PMM
  • Supported Data Types: NC variables, NC style packages, NC program packages, tool data, machine data, machine parameters, and zero offsets
  • Axis Processor Module: Sercos interface
  • Additional Drives: 8 normal configuration, up to 32 max configuration
  • Diagnostics: Supported over the serial COM interface.
