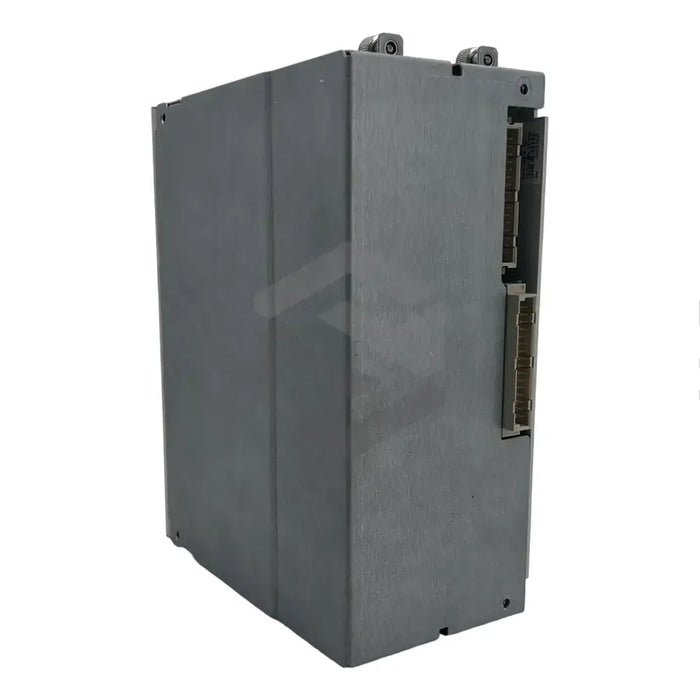

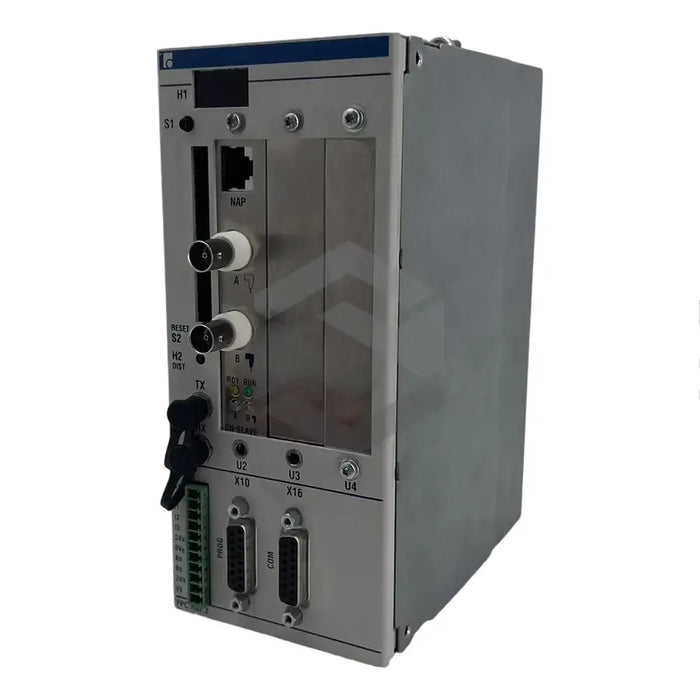

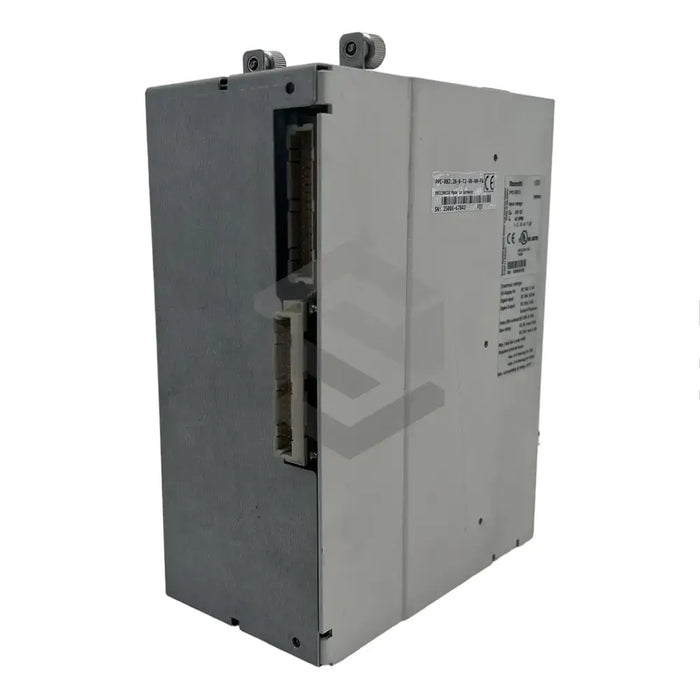

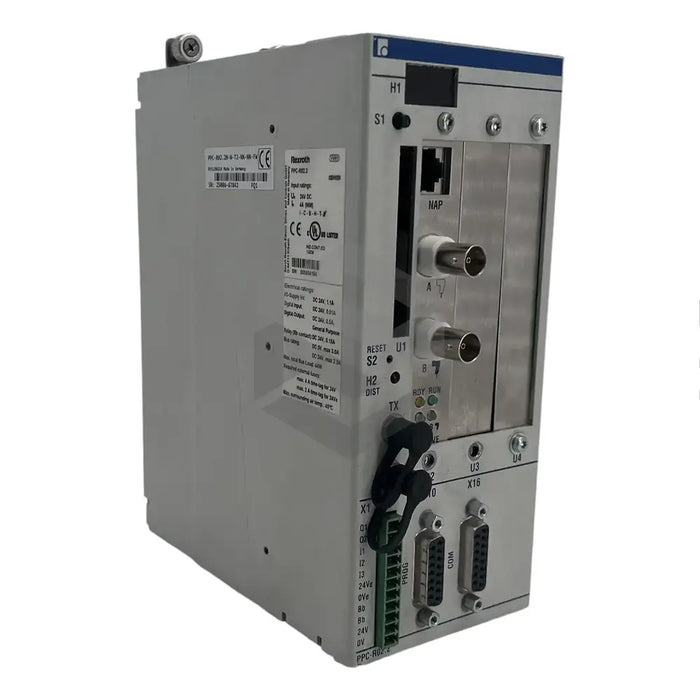

PPC-R02.2N-N-L2-NN-NN-FW

Request a quote
The Bosch Rexroth Indramat PPC-R02.2N-N-L2-NN-NN-FW offers cutting-edge CNC control, capable of managing multiple drives concurrently with guaranteed efficiency and reliability. Boasting IP 20-grade protection, it ensures damage prevention against objects sized above 12.5mm. Suitable for diverse applications, it operates as a programmed logic controller or an NC controller. It facilitates data transfer via RS485, RS232, and RS422 serial interfaces, and comes equipped with a lithium battery that buffers the SRAM and system clock. This unit can control up to 32 drives via its Sercos interface in its maximum configuration, and includes operator terminals (BTM 15/16, BTA20) via its operator input terminal bus. Recommended for environments of 0-45°C and relative humidity of 10-95%, the controller is commonly used in machine centers, machine tools, and rotary transfer machines.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: PPC-R02.2N-N-L2-NN-NN-FW
  • Type: CNC Control Unit
  • IP Rating: IP 20
  • Data Transfer Interfaces: RS485, RS232, RS422
  • Installation Rack: RMB02.2
  • Power Source: Lithium Battery
  • Axis Processor Module Interface: Sercos
  • Additional Drives Support: 8
  • Max Configuration Sercos: 32 Drives
  • Diagnostics: Serial COM interface
  • Applications: Machine Centers, Machine Tools, Rotary Transfer Machines
  • Compatible Terminals: BTM 15/16, BTA20
  • Operating Temperature: 0 ᵒC to 45 ᵒC
  • Operating Humidity: 10% to 95%.
