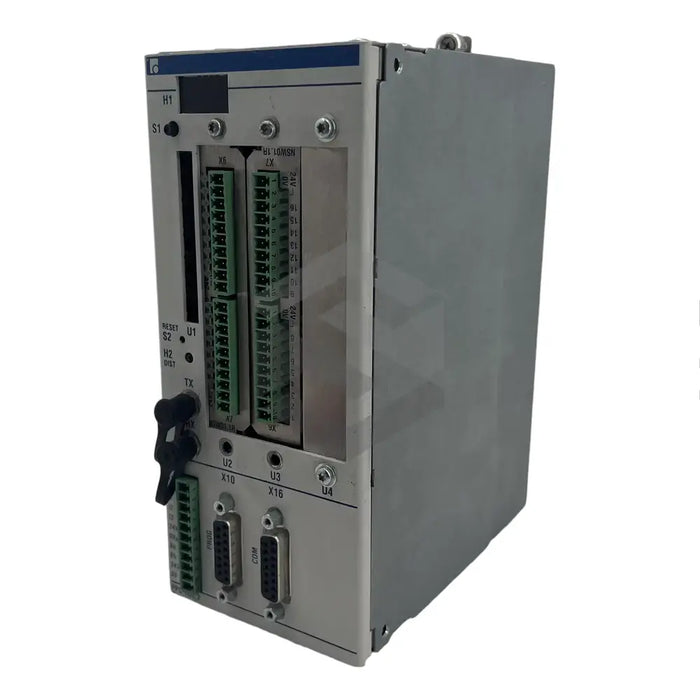

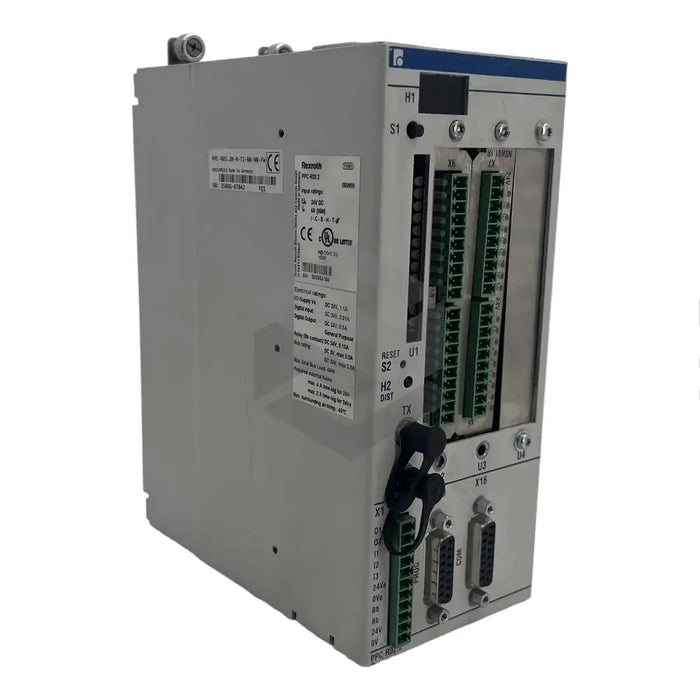

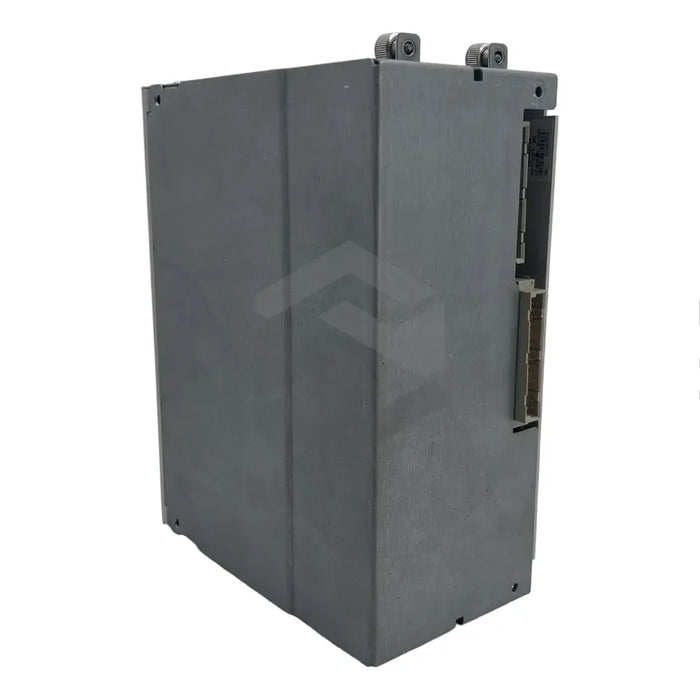

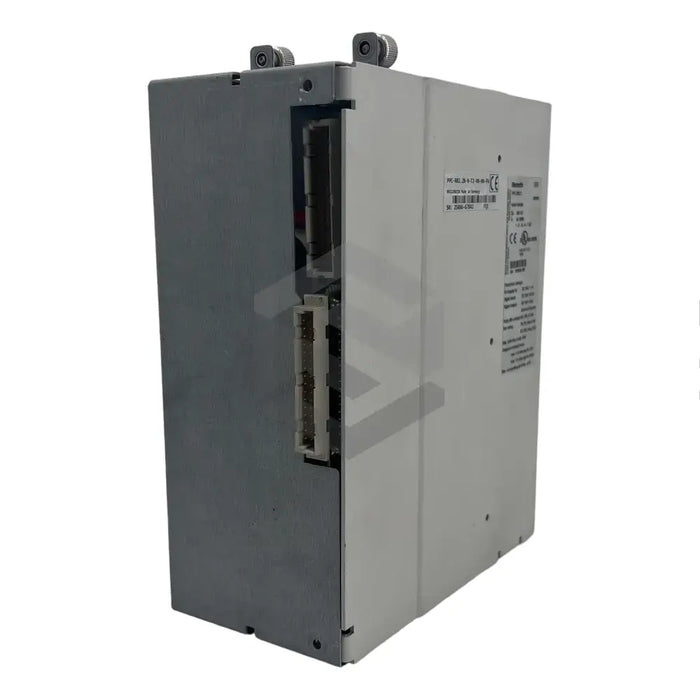

PPC-R02.2N-N-N1-N2-NN-FW

Request a quote
The PPC-R02.2N-N-N1-N2-NN-FW is a superior CNC control unit engineered by Bosch Rexroth Indramat, a leading manufacturer known for its reliable and cost-efficient motion control equipment. With multiple connectivity options, this device can control several drives at once and can also function as an NC controller or standalone PLC system. Compact in size (83.7 mm x 192 mm x 150 mm) and lightweight (1.3 kg), the unit can be conveniently installed in a switch cabinet using RMB02.2 dual racks. It is equipped with a cutting-edge diagnostics setup and a protective barrier against objects up to 12.5 mm in size. The system is widely used in machine tools, rotary transfer machines, and machining centers. To ensure optimal performance and durability, it should be kept within 0°C to 45°C and a relative humidity of 10% to 95%.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: PPC-R02.2N-N-N1-N2-NN-FW
  • Product Type: CNC Control Unit
  • Connectivity: RS232, RS422, RS485
  • Dimensions: 83.7mm x 192mm x 150mm
  • Weight: 1.3 kg
  • Installation: RMB02.2 dual racks
  • Functionality: NC Controller, standalone PLC system
  • Protection: Against damage caused by objects larger than 12.5 mm
  • Diagnostics Setup: Via serial COM interface
  • Applications: Machine tools, rotary transfer machines, machining centers
  • Power Source: Lithium battery
  • SRAM uses: Store machine data, NC cycle packages, zero offsets NC program packages, NC variables
  • Storage Environment: Aggressive industrial environments
  • Operating Temperature: 0 ᵒC to 45 ᵒC
  • Relative Humidity: 10% to 95%
