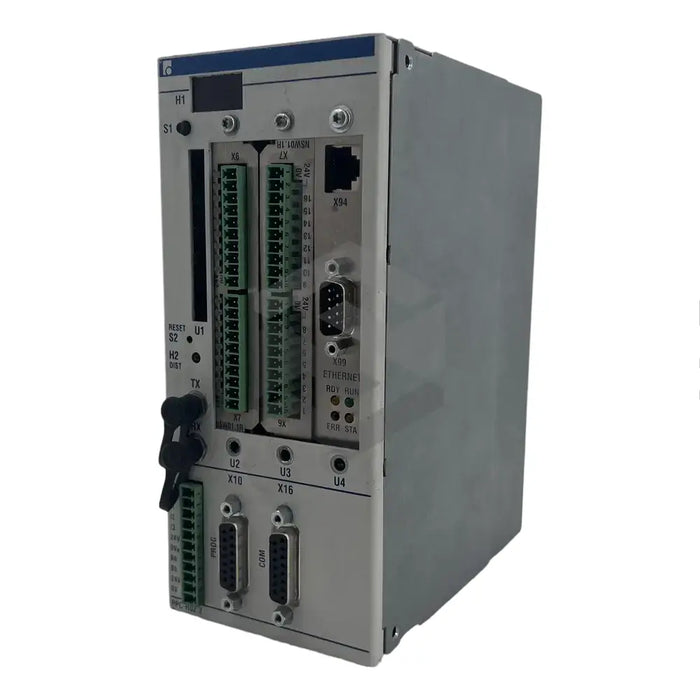

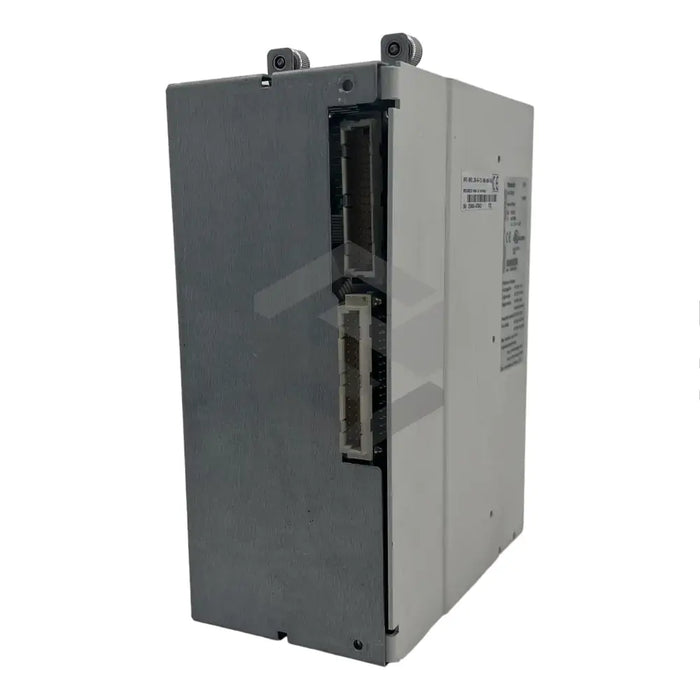

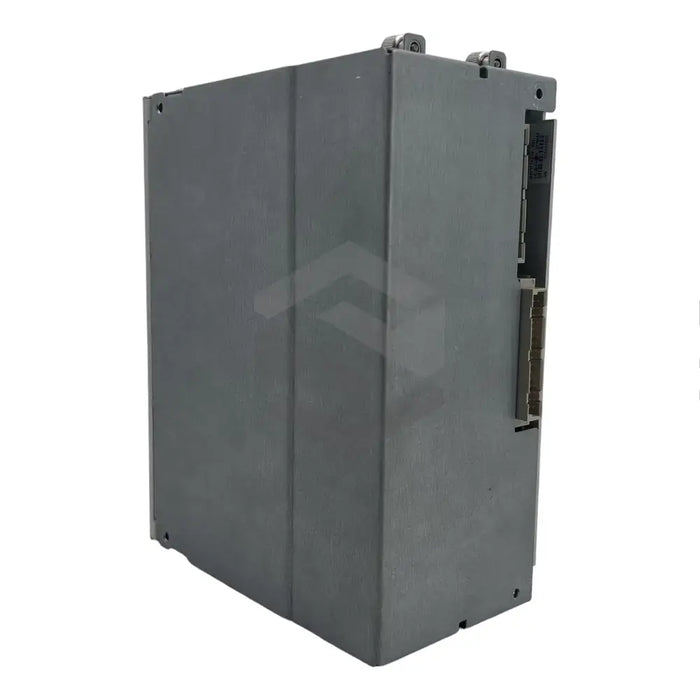

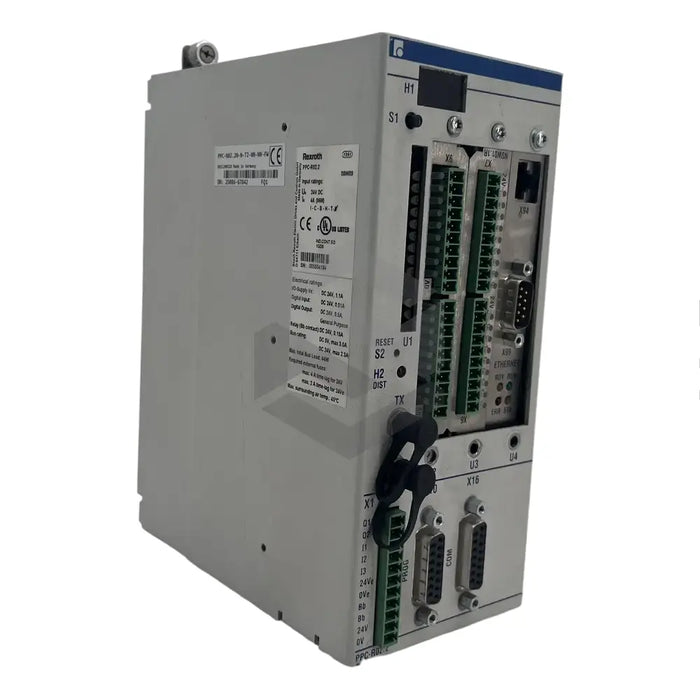

PPC-R02.2N-N-N1-N2-T2-FW
The PPC-R02.2N-N-N1-N2-T2-FW manufactured by Bosch Rexroth Indramat is a compact but robust controller that can function as either a PLC or NC controller, depending on the applied software and use-case. The PPC-R series offers two compact enclosure versions with complete connection interfaces based on the Indramat standard. These controllers are equipped with a BT bus that supports application-specific operator input terminals for distances up to 50 meters. The unit is mounted using a module carrier system consisting of one or more RMB02.2-04 units, with a double carrier RMB02.2-02 solely utilized for securing the PPC-R unit. However, there is no support for controlling RECO modules or connecting multiple PPC-R Units through a backplane. Capable of handling up to fifteen additional I/O modules, the controller also comes with fixed PC/104 modules for field bus interfaces like Profibus and Interbus and serves as a real-time communication system for key motion control components.
30 Day Warranty
Technical Specifications
