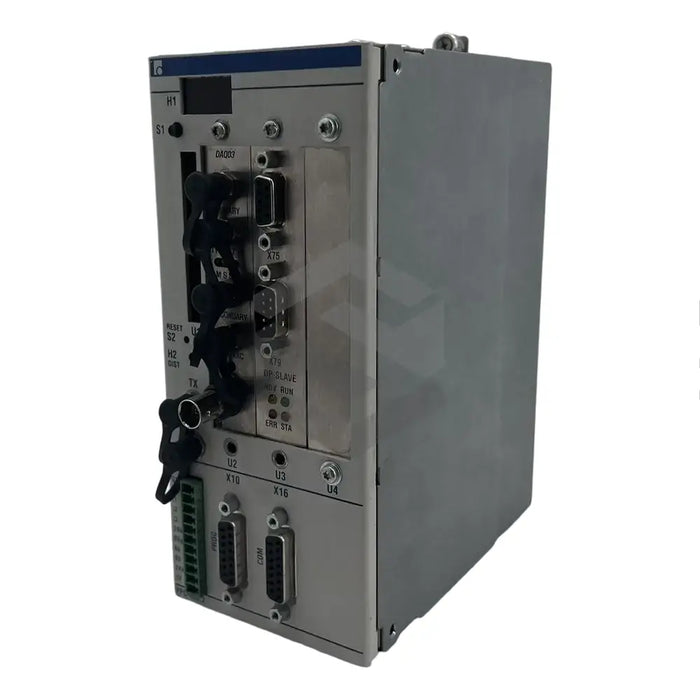

product Main (Front Left) image of PPC-R02.2N-N-Q1-P2-NN-FW

PPC-R02.2N-N-Q1-P2-NN-FW

by Bosch Rexroth Indramat
$14,296.44 - $14,296.44
$14,296.44
$14,296.44 - $14,296.44
$14,296.44
In Stock, Ships Today
Bosch Rexroth Indramat presents the PPC-R02.2N-N-Q1-P2-NN-FW controller, a specialized product in its line of PPC controllers which operate on the global Sercos communication system. Made for critical motion control applications, this standalone multi-axis controller can be utilized with SynTop, Synax and Visual Motion, along with GPP firmware. The controller can pair effectively with all EcoDrive03 and Diax04 drives, using Visual Motion firmware of GPP to provide essential multi-axis functions. Housed in a compact, IP 20 rated, Reco unit designed casing; this controller can function as either an NC or PLC controller. Weighing 1.3 kg with dimensions of 83.7mm x 192mm x 150mm, this controller operates at ambient temperatures of 0-40 degrees Celsius, offering a rated power supply value of 24 VDC, and a maximum current consumption on 24 VDC of 1.2 A.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: PPC Controller
  • Variety: PPC-R02.2N-N-Q1-P2-NN-FW
  • Function: Motion and Logic Control
  • Form Factor: Reco 02
  • Compatibility: EcoDrive03 and Diax04 Drives
  • Firmware: Visual Motion or GPP
  • Protection Category: IP 20
  • Housing Version: Reco Unit
  • Functionality: NC or PLC Controller
  • Weight: 1.3 kg
  • Housing Dimensions (B x H x D): 83.7 mm x 192 mm x 150 mm
  • Operating Ambient Temperature: 0 to 40 degrees Celsius
  • Storage Temperature: -25 to +70 degrees Celsius
  • Power Supply: 24 VDC
  • Max Current Consumption: 1.2 A.
