PPC-R02.AN-N-NN-NN-NN-FW

Request a quote

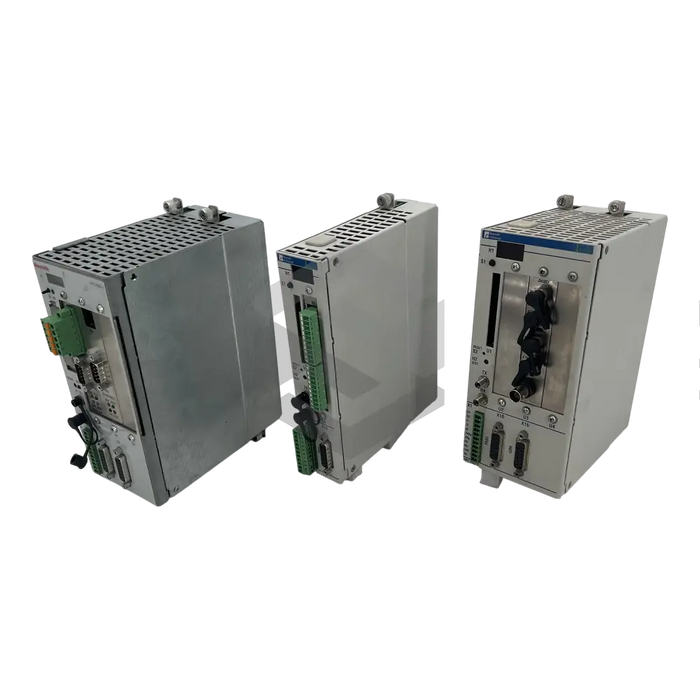

The PPC-R02.AN-N-NN-NN-NN-FW is a CNC module produced by Bosch Rexroth Indramat. It features a design code of 2, an external 4MB flash memory module, and a built-in battery. The control unit includes three digital inputs, two digital outputs, an alphanumeric display and a PowerPC microprocessor. The battery, allowing for buffering of data, lasts for 10 years unused at room temperature, and four years when permanently off. The module contains a one ready-for-operation relay, consumes 1.2A at 24VDC, and is compatible with both SAFT and MAXELL. It must not have an active PAP2 axis processor module installed and the two-digit character displays power failures and boot lock errors. Please ensure careful disposal of the discharged battery, and remember the X1 11-pin Phoenix socket. The unit's COM interface accepts modems and works in relative humidity of 5% to 95% and an atmospheric pressure range of 70 to 106 kPa. Delivery is available for the PPC-R02.AN-N-NN-NN-NN-FW CNC module.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: PPC-R02.AN-N-NN-NN-NN-FW
  • Design Code: 2
  • Flash Memory: 4MB
  • Input: Three Digital Inputs
  • Output: Two Digital Outputs
  • Display: Four-Character Alphanumeric
  • Microprocessor: PowerPC
  • Battery Type: Lithium
  • Shelf Life: 10 Years at 25°C in Unused State
  • Life Time: 4 Years in Permanently De-Activated State
  • Relay: One ready-for-operation
  • Power Consumption: 1.2A at 24VDC
  • Battery Brands Support: SAFT or MAXELL
  • Axis Processor Module: Active PAP2 Not Supported
  • Humidity Support: 5% to 95%
  • Atmospheric Pressure Support: 70 to 106 kPa
  • Voltage Range: 19.2 to 30 VDC
  • Connector: 11-pin Phoenix Socket
  • COM Interface: Modem Capable
  • Transportation and Storage Temperature: -25°C and 70°C
