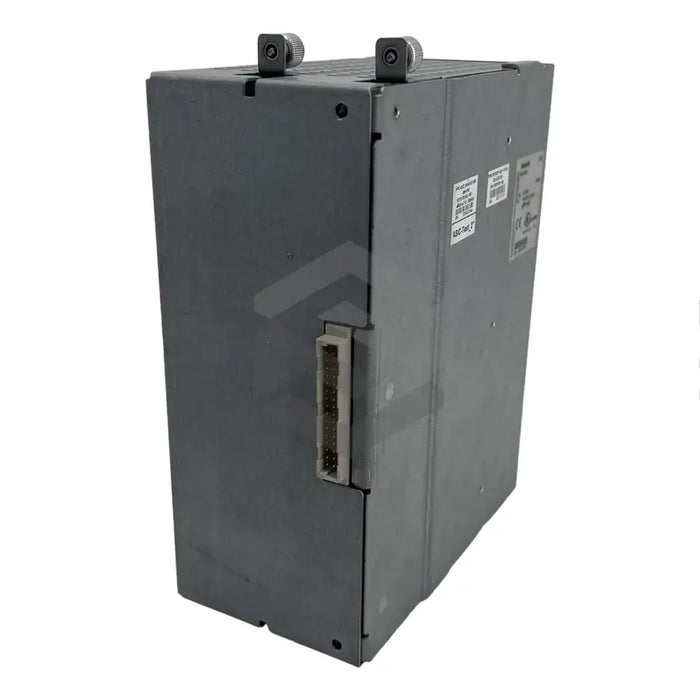

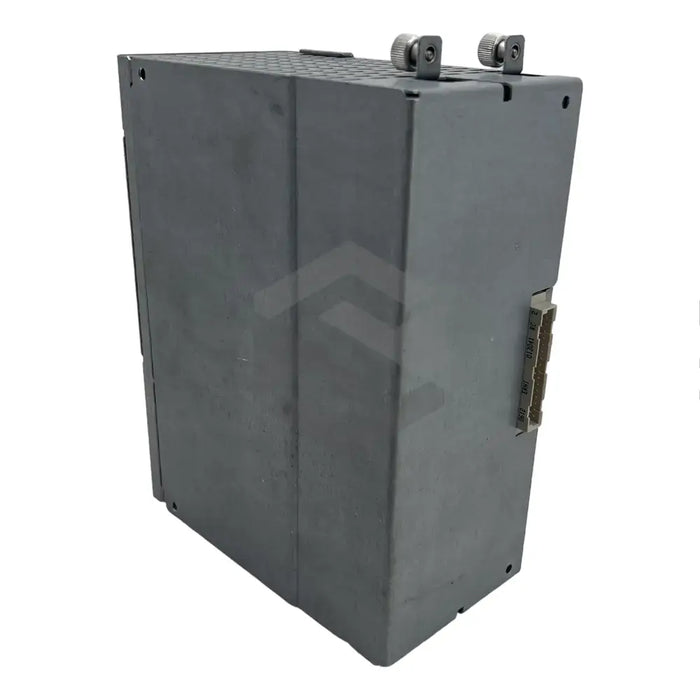

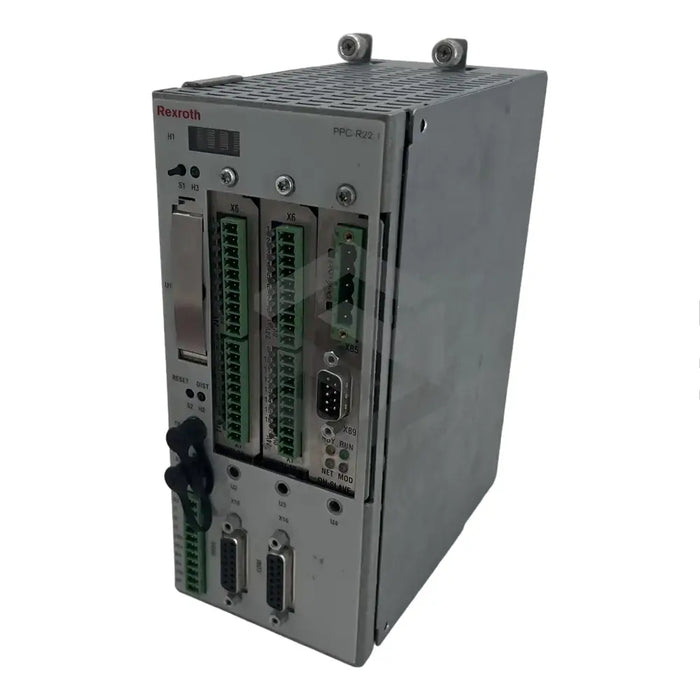

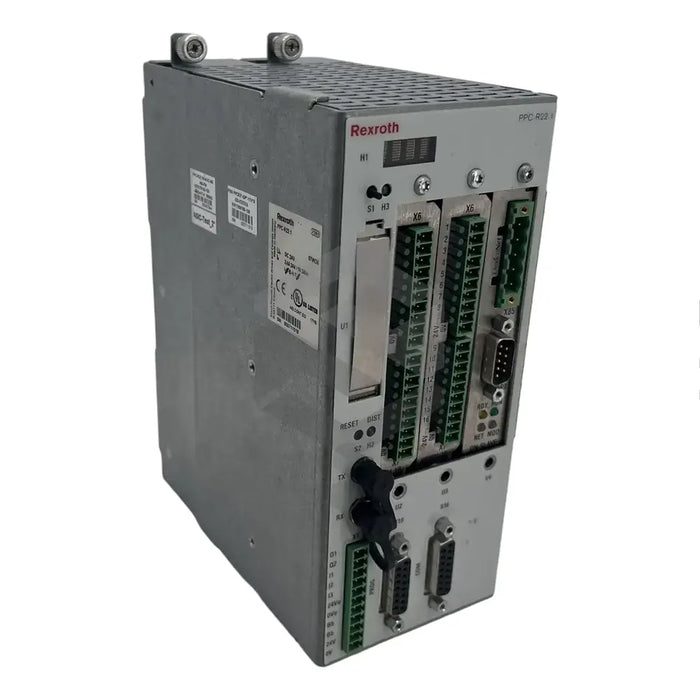

PPC-R22.1N-N-N1-N2-V2-FW

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message
The PPC-R22.1N-N-N1-N2-V2-FW, produced by esteemed industrial automation equipment manufacturer, Bosch Rexroth Indramat, is a multifunctional, programmable control. It can manage up to 40 IndraDrive, Diax 04, or EcoDrive family intelligent digital drives. The standard 24 VDC model utilizes a VisualMotion GP 10 firmware, enabling organized multi-axis movement with integrated logic control functions. A critical minimum of +20 VDC is required to avoid triggering a power fail signal and shutting down the motion/logic control. Installation instructions dictate that the unit should sit vertically in the first slot of the initial RMB rack. Sufficient clearance above and below is needed for heat dissipation. The model includes a 32MB memory card for storing user specifics and a PLS master and slave module, as well as a DeviceNet slave module for fieldbus interfacing. The unit is not liquid resistant (IP 20 standard), and has an operational altitude capacity of 1500 meters and temperature range of 0 to +45 degrees Celsius.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Bosch Rexroth Indramat

Model Number


PPC-R22.1N-N-N1-N2-V2-FW

Nominal Voltage


24 VDC

Permissible Ripples


4 Vpp

Minimum Supply Voltage


+20 VDC

Control Function


Programmable multi-axis motion and logic control

Firmware


VisualMotion GP 10

Installation Slot


Slot 00

Rack Type


RMB

Communication Bus


Reco 02 back-plane bus

Display Type


H1

Push Buttons


S1

Memory


32MB compact flash

Installed Modules


PLS master and slave, DeviceNet slave fieldbus

Installation Position


Vertical upright

Protection Rating


IP 20

Altitude Limit


1500 meters above sea level

Operating Temperature Range


0 to +45 degree Celsius
