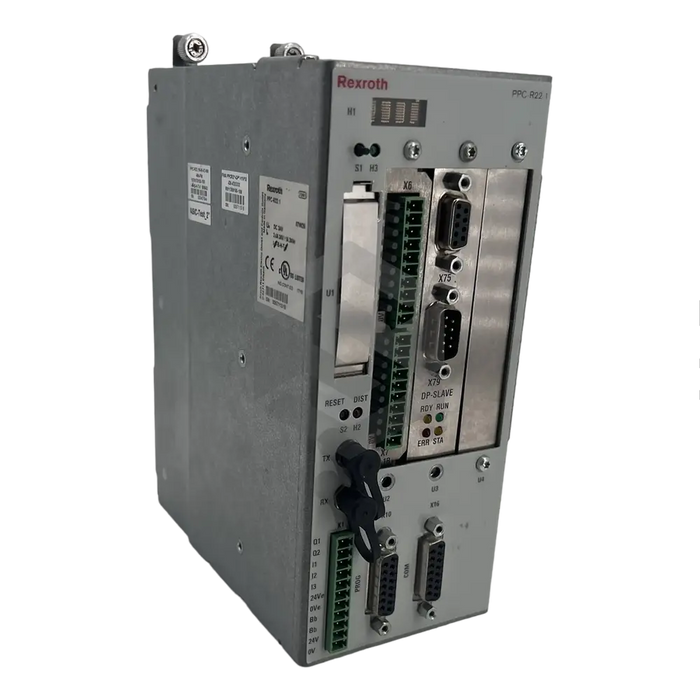

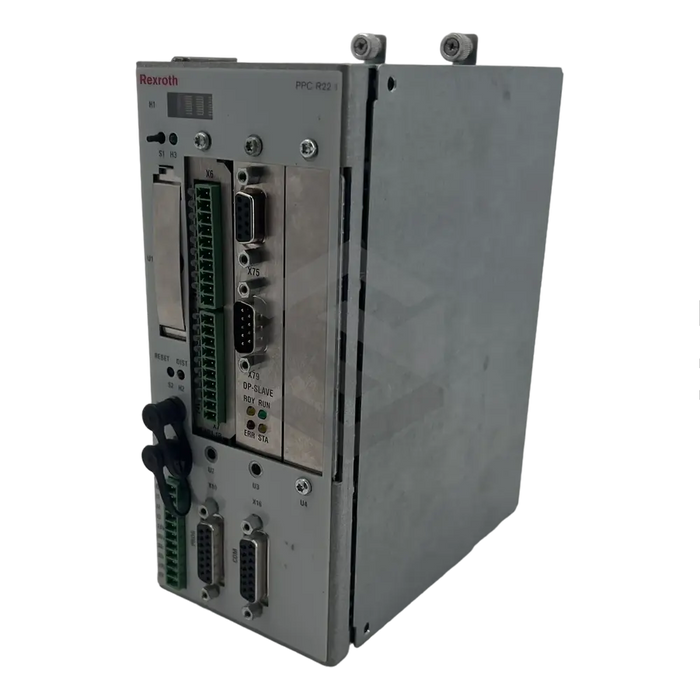

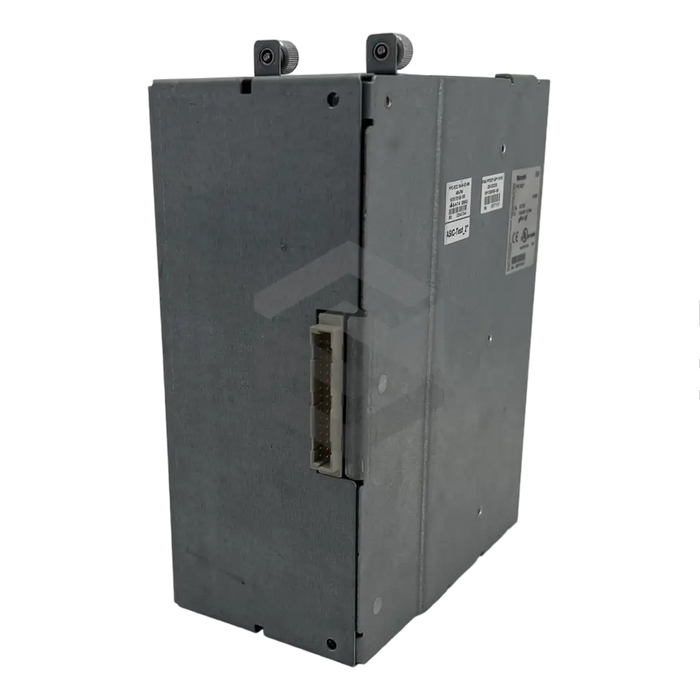

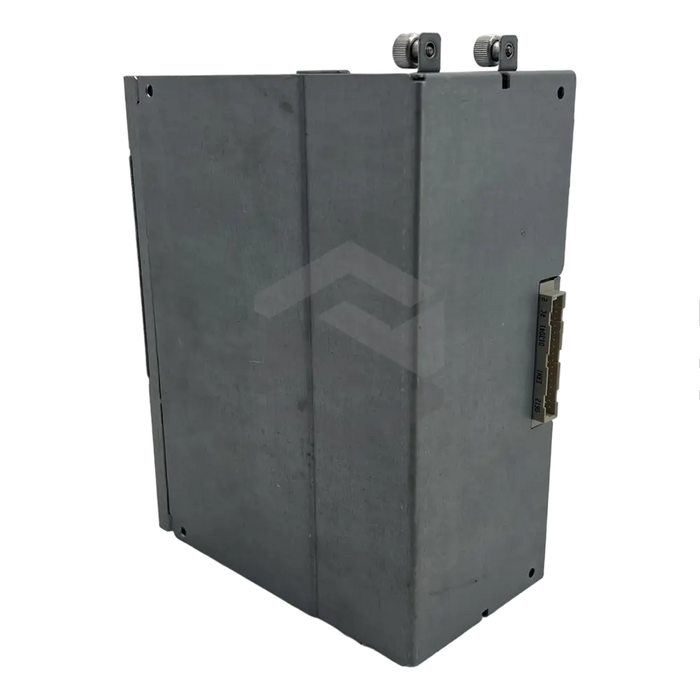

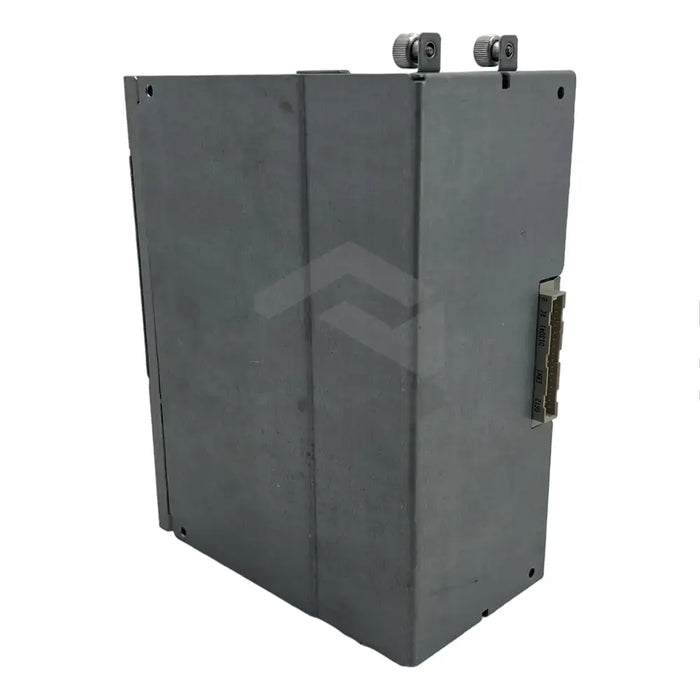

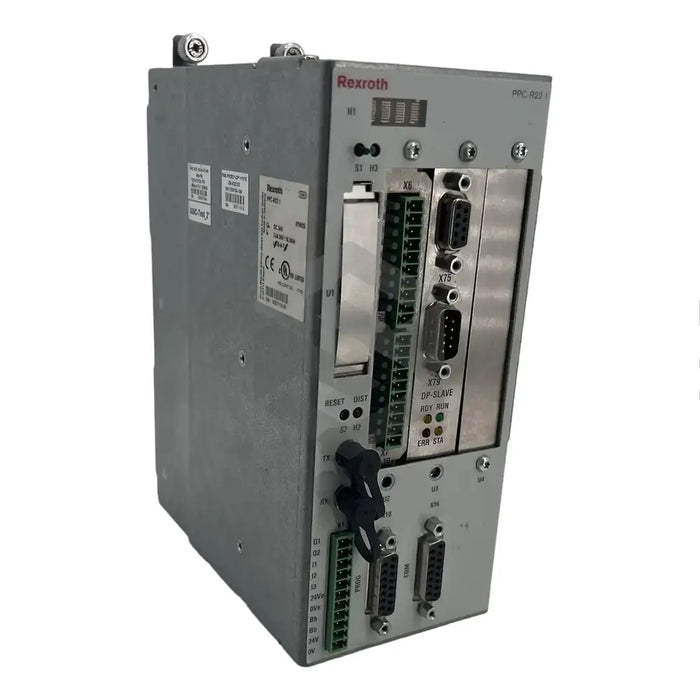

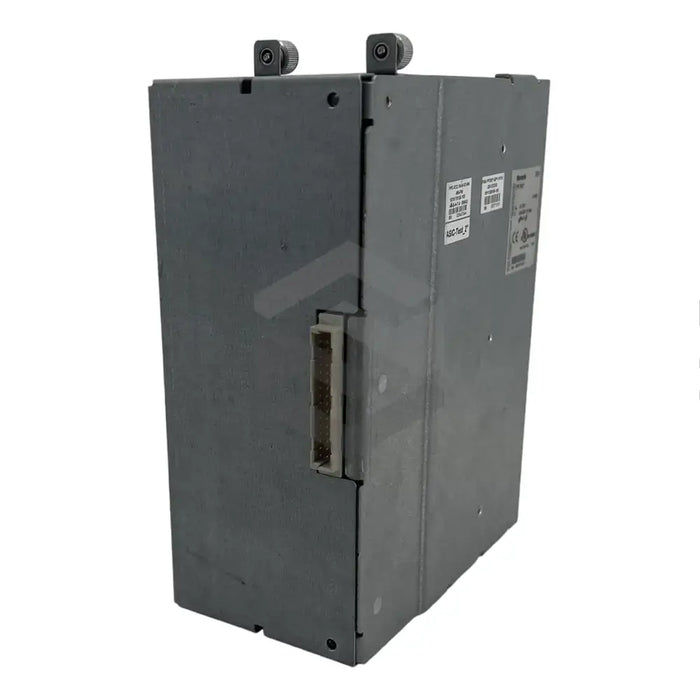

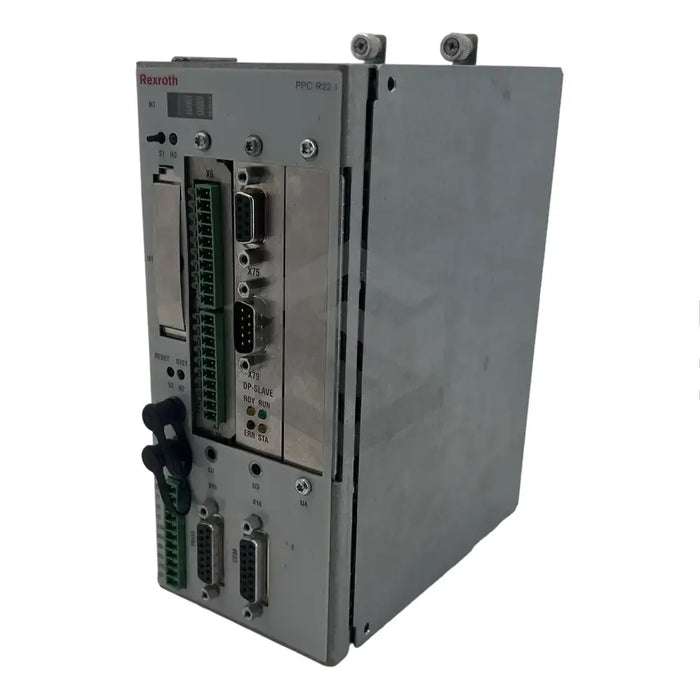

PPC-R22.1N-N-N1-P2-NN-FW

by Bosch Rexroth Indramat
Request a quote
Manufactured by Bosch Rexroth Indramat, the PPC-R22.1N-N-N1-P2-NN-FW is a standalone control module used in automation across various industries. Installed vertically in the leftmost RMB rack slot, it's capable of overseeing up to 40 Bosch Rexroth intelligent digital drivers via its VisualMotion 10 hardware. The model requires a 1.5 mm2 cable for a 24 VDC electrical hookup from the power supply and operates within a voltage range of 19.2 – 30 VDC. Weighing approximately 1.3 kg, it measures 217 × 84 × 165 mm and can be installed in the Reco 02 rack. It houses three expansion slots which may contain the PLS master module and PROFIBUS-DP slave module. Other features include communication capacity via SERCOS, IP 20 protection standard, and an acceptable temperature range of 0-45°C. The unit requires separate firmware.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: PPC-R22.1N-N-N1-P2-NN-FW
  • Use: Stand-Alone Control
  • Installation Slot: Leftmost Slot (Slot 00) of RMB Rack
  • Control Capacity: Up to 40 Intelligent Digital Drivers
  • Cable Type: 1.5 mm2 for 24 VDC Connection
  • Dimensions: 217 × 84 × 165 mm (H × W × D)
  • Compatibility: With Reco 02 Rack, LocalReco 02 I/O Modules
  • Communication Method: SERCOS
  • Voltage Range: 19.2 – 30 VDC including ripples
  • Current Consumption: 1.2 A (+ supply voltage for I/O modules up to 2.6 A)
  • Weight: Approximately 1.3 kg (2.87 lbs)
  • Expansion Slots: Three
  • Slot 1: PLS Master Module
  • Slot 2: PROFIBUS-DP Slave Module
  • Slot 3: Empty
  • Firmware: Operates at GPP 10 (ordered separately)
  • Grounding Method: Using Grounding Bolt
  • Protection Standard: IP 20
  • Temperature Range: 0 to +45 degrees Celsius.
